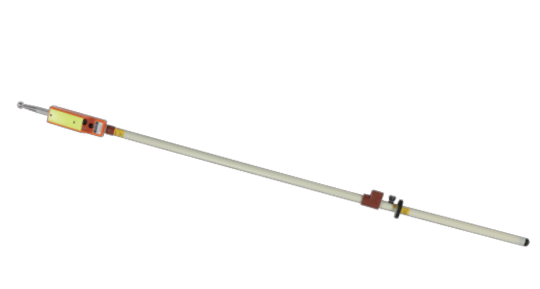

HASEGAWA HS-90N Medium Voltage and High Voltage Detector (6～90kV)
Manufacturer: HASEGAWA Model: HS-90N Origin: Japan Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536

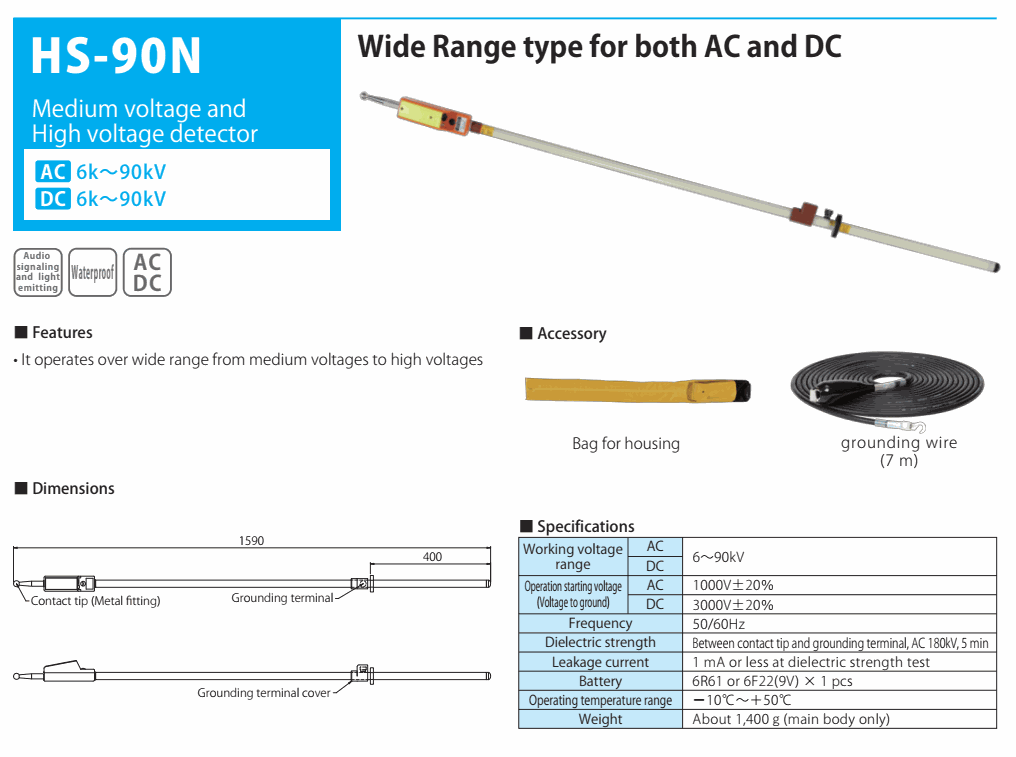

■ Specifications:
Working voltage range: AC/DC: 6～90kV
Operation starting voltage (Voltage to ground):
AC: 1000V±20％
DC: 3000V±20%
Frequency: 50/60Hz
Dielectric strength: Between contact tip and grounding terminal, AC 180kV, 5 min
Leakage current: 1 mA or less at dielectric strength test
Battery: 6R61 or 6F22(9V) × 1 pcs
Operating temperature range: －10℃～＋50℃
Weight: About 1400 g (main body only)
■ Accessory: Bag for housing, grounding wire (7 m)
■ Features:
• It operates over wide range from medium voltages to high voltages
