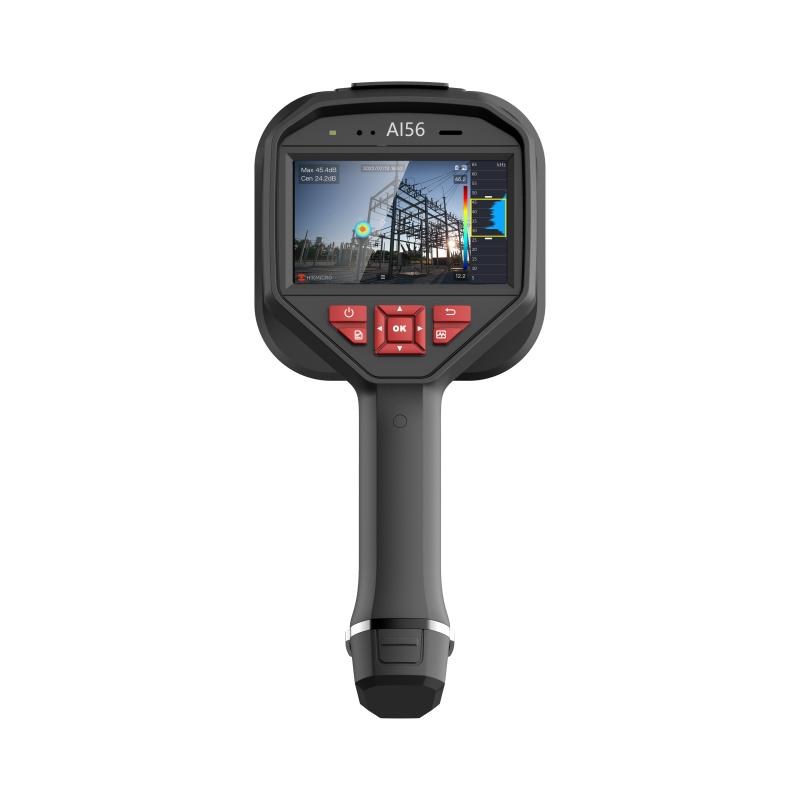

HIKMICRO AI56 Acoustic Imaging Camera

Acoustic

Number of Microphones: 64

Bandwidth: 2kHz~65kHz

Distance: 0.3m~100m

Camera FOV: 51.8°× 36.4°

Sound Intensity Display: Peak Point, Center Point

Acoustic Image Frame Rate: 25 fps

Signal Noise Ratio: 70dB

Acoustic Image Resolution: 800 × 480

Acoustic Image Palette: 8: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red

Leak Rate: >0.008 l/min @ 6 bar from 0.5 m (1.64 ft) >0.013 l/min @ 5 bar from 1 m (3.28 ft)

Image Display

Display: 800 × 480 Resolution, 4.3’LCD Touch Screen

Screen Brightness: Manual/Auto

Digital Zoom: 1.0x to 8.0x continuous

Data Storage and Communication

Storage Media: Removable 64 GB SD Card

Image Storage Capacity: 20,000 images

Annotations: Voice note: max. 60 seconds; Text note: max. 200 characters

Video Storage Capacity: 60 hours

Video File Format: MP4

General

Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)

USB Interface: USB Type-C

HDMI Interface: HDMI-D

Battery Type: Dismountable and Rechargeable Li-ion Battery

Battery Operating Time: Approx. 3.5 hours

Battery Charging Time: 5 hours to full charge

Protection Level: IP40

Drop Test Height: 1.2 m (3.94 ft)

Safety: IEC 61010-1

EMC: EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3

Working Temperature Range: -20 °C to 50 °C (-4 °F to 122 °F)

Storage Temperature Range: -20 °C to 60 °C (-4 °F to 140 °F)

Relative Humidity: ＜95 % non-condensing

Weight: Approx. 940 g (2.07 lb)

Dimension: 292.2 × 127 × 110.7 mm (11.50 × 5.00 × 4.36 in)

Tripod Mounting: UNC ¼”-20

Power Supply: 5V DC/2A (Charging via USB)
