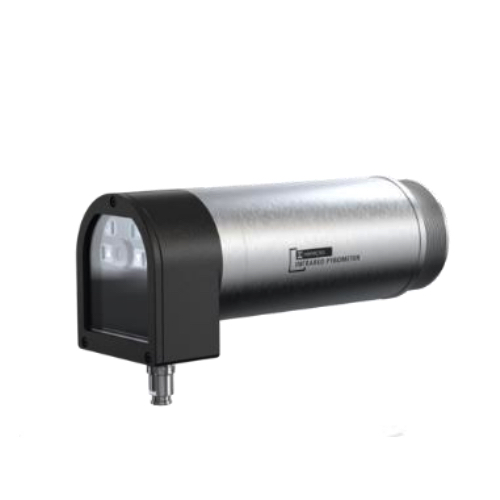

HIKMICRO PD121 Pyrometer (500°C~1800℃, 0.6m ~ INF)

Measurement specification

Spectral Response: 0.8μm & 1.08μm (Two Color)

Temperature Range: 500°C ~ 1800°C (932°F ~ 3272°F)

Accuracy: ±(0.3%*Tmea + 1)°C or ±(0.3%*Tmea + 1.8)°F, Tmea means "Current measured temperature"

Resolution: 0.1°C / 0.18°F

Repeatability: ±(0.1%*Tmea + 1)°C or ±(0.1%*Tmea + 1.8)°F, Tmea means "Current measured temperature"

Optical Resolution (D): 100:1 (90% energy)

Spot Size: 6mm

Response Time: 1ms

Slope: 0.850 ~ 1.150

Emissivity: 0.100 ~ 1.100

Sighting: Laser, visual display, eyepiece

Signal Processing: Averaging mode, temperature filter mode, peak/valley hold mode

Focus Range: 0.6m ~ INF

Visual

Field of View (FOV): 11° x 8°

Optical Resolution: 2688 * 1944

Data Communication

Analog output:

- Supports proportional output, 16-bit resolution, max load 600Ω

- Interface: 4-20mA

- Output Types: 4-20mA / 0-20mA / 0-5V / 0-10V

Digital Output: RS485

Alarm Output:

- Supports relay control, dual control methods

- COM output: Optocoupler isolation, delay time less than 2ms

- PNP output: DC24V

Protocols: TCP/IP

General

Power Supply: DC 24V

Power Consumption: Max 10W

Display: 2.4" OLCD screen, resolution 600 * 448

Laser: yes

Protection Level: IP65

Working Temperature Range:

- Without cooling: -20°C to +65°C (-4°F to +149°F)

- With air & water cooling accessories: -20°C to +300°C (-4°F to +572°F)

Storage Temperature Range: -20°C to 70°C (-4°F to +158°F)

Relative Humidity: < 95% non-condensing

Vibration: 1 g, IEC 60068-2-6

Shock: 15 g, IEC 60068-2-27

Dimensions: 87.8 x 92.4 x 229.5mm (3.1 x 3.64 x 9.04 in)

Weight: 1780g (3.92 lb)
