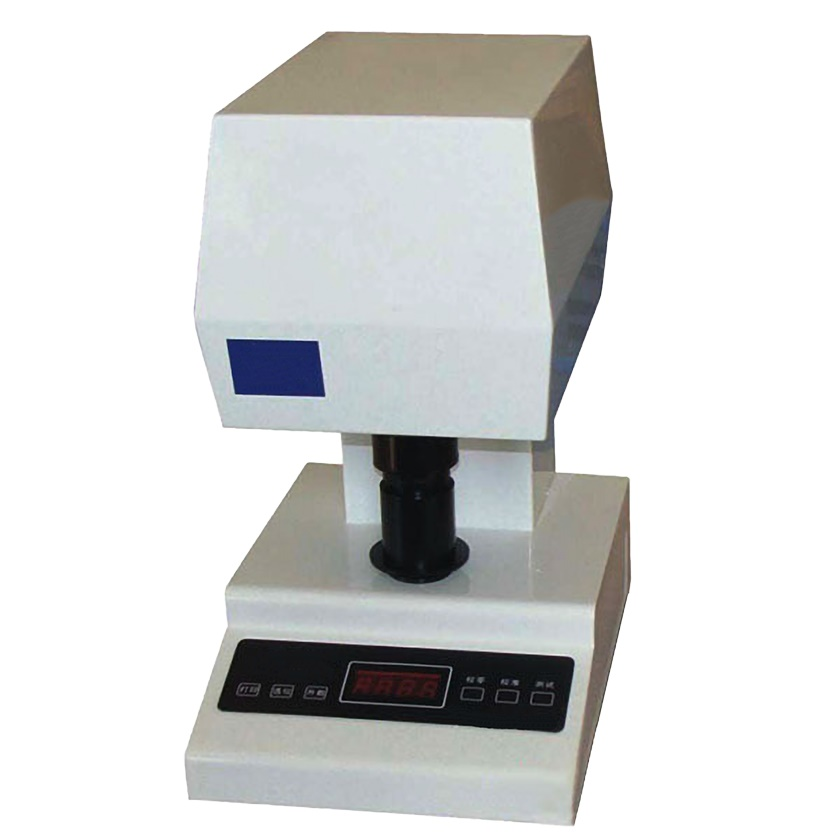

HINOTEK WSB-V Intelligent whiteness meter (Without Printer)

The intelligent whiteness meter (whiteness tester) uses pulse flash technology to measure the blue light whiteness of the surface of the object. Without printing function. Repeatability: ≤0.1; Indication drift: ≤0.1;Zero drift: ≤0.1; Indication error: ≤0.5.

Purpose of whiteness meter

The intelligent whiteness meter is a digital display intelligent whiteness meter, which is mainly used to measure the blue light whiteness of the surface of the object, and the measurement result is displayed digitally. It is suitable for flour, starch, rice flour, salt, textiles, printing and dyeing, chemical fiber, plastic, Porcelain clay, talcum powder, white cement, paint, paint, ceramics, enamel, paper, pulp and other departments that need to measure the whiteness of the product.There are two types of intelligent whiteness meter without printing and with printing, which can be selected as required.

Features

1. The intelligent whiteness meter is equipped with a long-life light source, up to 100,000 hours.

2. Fully sealed design to meet various production site determinations.

3. The digital display whiteness meter adopts a simple linear calculation method with high accuracy.

4. The operation of the whiteness meter is simple and convenient: one-key zero calibration, full digital calibration of the whiteboard, and automatic storage of calibration parameters.

5. Highly integrated hardware design, embedded operating system. Fast digital wave algorithm, two seconds to complete the measurement. The technical performance accords with the measurement result of JJG512-2002 whiteness meter, the measurement result is displayed digitally, and it can also be printed out by a printer.

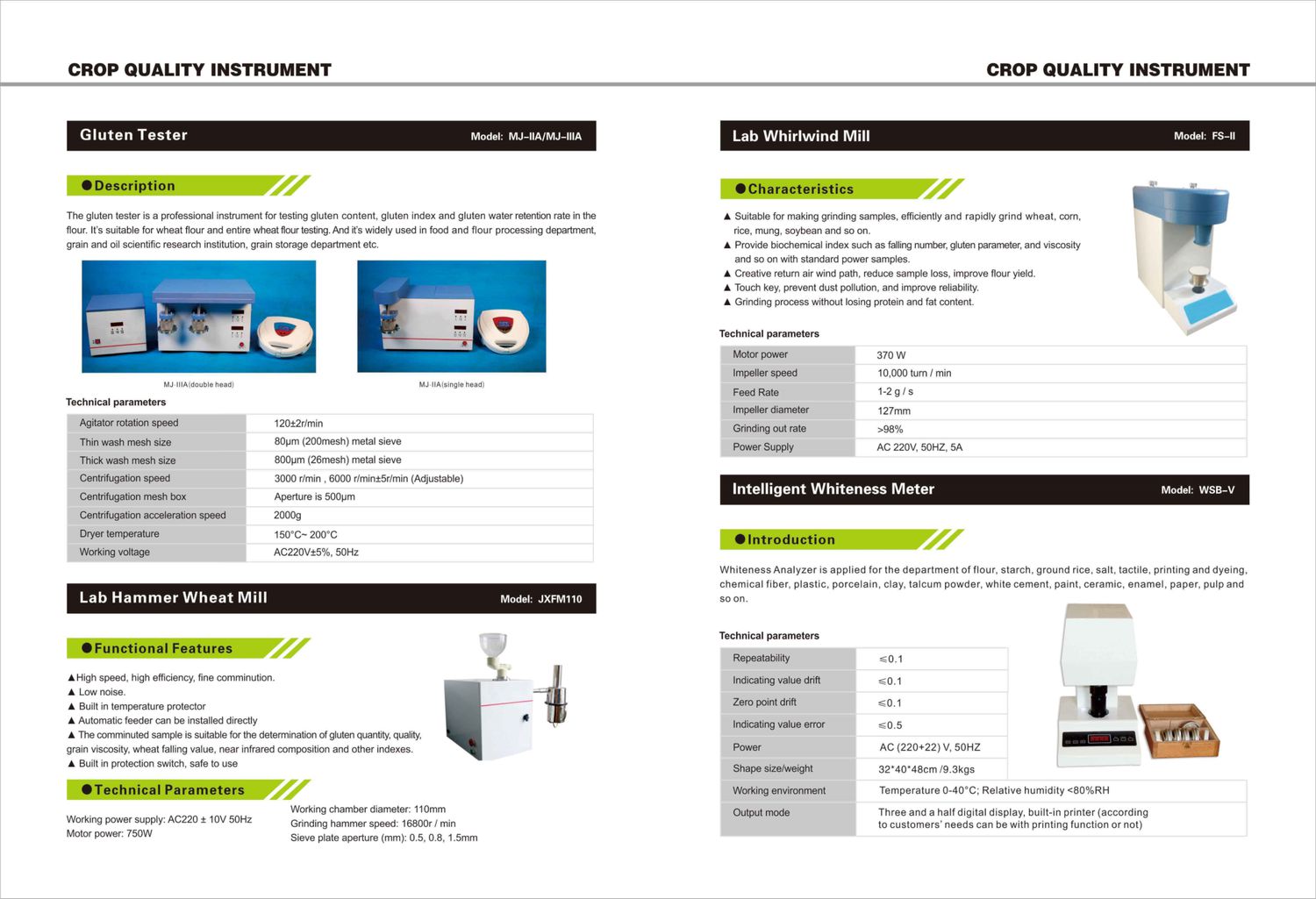

Datasheet
