HIOKI CM3286 CLAMP POWER METER

Manufacturer: HIOKI
Model: CM3286
Origin: Japan
Guarantee: 12 Month
Contact
In stock: 1 Unit
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0345.689.536

Specifications
Manufacturer Info

Measurement line:
Single-phase, Three-phase (balanced with no distortion)
Measurement items:
Voltage, Current, Voltage/ current peak, Active/ reactive/ apparent power, Power factor, Phase angle *1, Frequency, Simple Active Energy Consumption (Single-phase) [CM3286-01 only*2] Voltage/ current harmonic levels
AC voltage:
[Measurement range] 80.0 V to 600.0 V, Single range,
Basic accuracy 45 - 66 Hz: ±0.7% rdg. ±3 dgt.
(Frequency characteristics: 45 to 1 kHz, True RMS)
AC current:
[Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy:
±1.3% rdg. ±3dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
Power:
[Single phase] 0.005 kW to 360.0 kW
Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1)
[Balanced three-phase 3-wire] 0.020 kW to 623.5 kW
Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1)
[Balanced three-phase 4-wire] 0.040 kW to 1080 kW
Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1)
Harmonic levels (CM3286-01only *2):
Voltage/ current harmonic levels up to 30th, Content factor,
Total harmonic distortion ratio
Other functions:
[Phase angle *1] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000 [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, Max / Min / Avg value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc.
Dustproof and waterproof:
IP54 (EN60529) Grip, excluding lever
Risk of electric shock from measured conductors increases when wet
Interface:
Bluetooth® 4.0LE, Display of measured values on an iOS device or an Android device
Power supply:
LR03 Alkaline battery ×2
Core jaw dia.:
φ 46 mm (1.81 in)
Dimensions and mass:
82 mm (3.23in) W × 241 mm (9.49in) H × 37 mm (1.46in) D, 450 g (15.9 oz)
Accessories:
Connection cord L9257 ×1, LR03 Alkaline battery ×2, Carrying case C0203 ×1, Instruction manual ×1 [CM3286-01 only]Notice Regarding Equipment That Emits Radio Waves ×1

Details

Hioki clamp meters are best in class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286 clamp on power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit. CAT IV 600V, CAT III 1000V Key Features • Display four parameters simultaneously • A handheld power meter that measures from 5 W of power and 60 mA of current Measure power ranging from 5 W at a low current of 60 mA to 360 kW • In addition to current, voltage, and power, measure simple integral power consumption and phase sequence • Features and functions deliver fast and efficient testing • Hold measured values to send them to a smartphone, quick and easy data recording (CM3286-01 only) Data can be downloaded to tablets and smartphones using Hioki’s dedicated apps available from the Google Play or App Store. (CM3286-01 only) Search for “HIOKI” and download the “GENNECT Cross” app. *Android, Google Play and the Google Play logo are trademarks of Google Inc. *iOS is a registered trademark of Cisco Technology, Inc. and/or its affiliates in the United States and certain other countries. *iPhone, iPad, iPad mini, iPad Pro and iPod touch are trademarks of Apple Inc. *Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc. *Microsoft, Windows, Windows Vista, and Excel are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. *Company names and Product names appearing in this catalog are trademarks or registered trademarks of various companies. *The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HIOKI E.E. CORPORATION is under license. *For the latest information about countries and regions where wireless operation is currently supported, please visit the Hioki website.

Broad measurement range

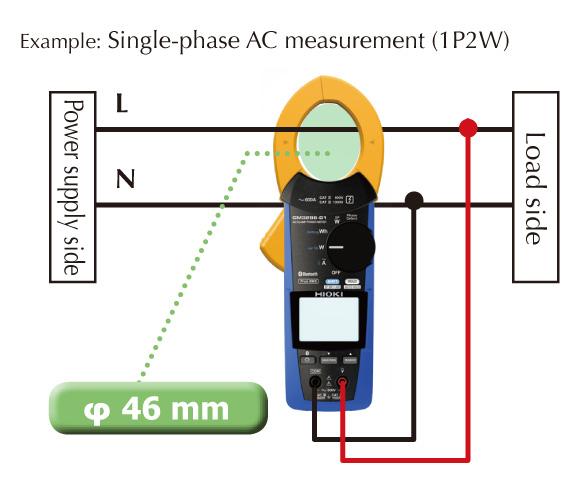

Delivering a broad range of measurements at sites from manufacturing plants to households Accurately measure power from 5 W at a current as low as 60 mA to 360 kW at a maximum of 600 A (single-phase power measurement) Measure power in single-phase to balanced three-phase circuits (with estimated values) (1-phase/ 2-wire, 1-phase/ 3-wire, balanced 3-phase/ 3-wire, and balanced 3-phase/ 4-wire) *The instrument generates estimated power values when measuring 3-phase circuits

Easy-to-see display

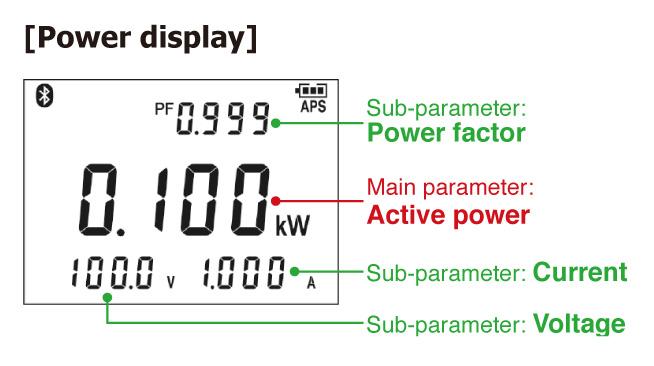

Related parameters and connection locations shown on the display at once (Main parameter×1, Sub-parameter×3)

Quick and easy data recording (CM3286-01 only)

When you freeze the measured value, it is automatically transferred to a smartphone or tablet, eliminating the need to jot down readings by hand. You can also create a simple PDF report right there in the field, and save data in CSV format for later editing in Excel. *Available for Android and iOS devices *GENNECT Cross (freeware) is required to use instruments with a smartphone or tablet.

Simple wiring guide

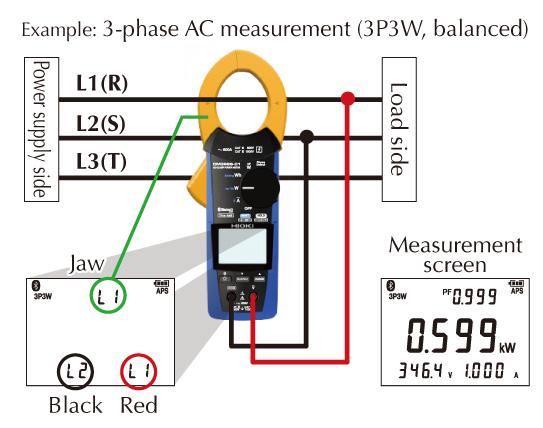

The CM3286 provides a simple on-screen guide indicating how to connect it to a 3-phase circuit.

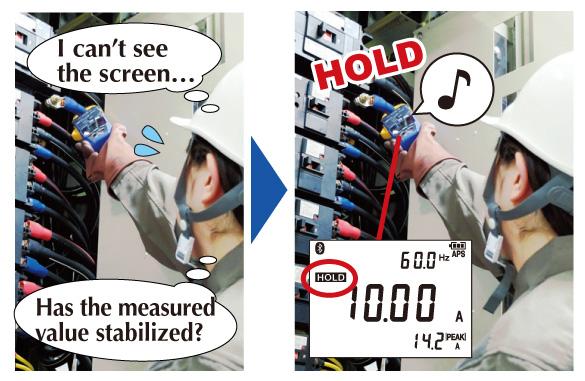

Built-in AUTO HOLD function

The clamp meters beep when the measured value stabilizes and then automatically hold the display value. This is useful when using the instrument in locations where it is difficult to see the display or press the hold button.

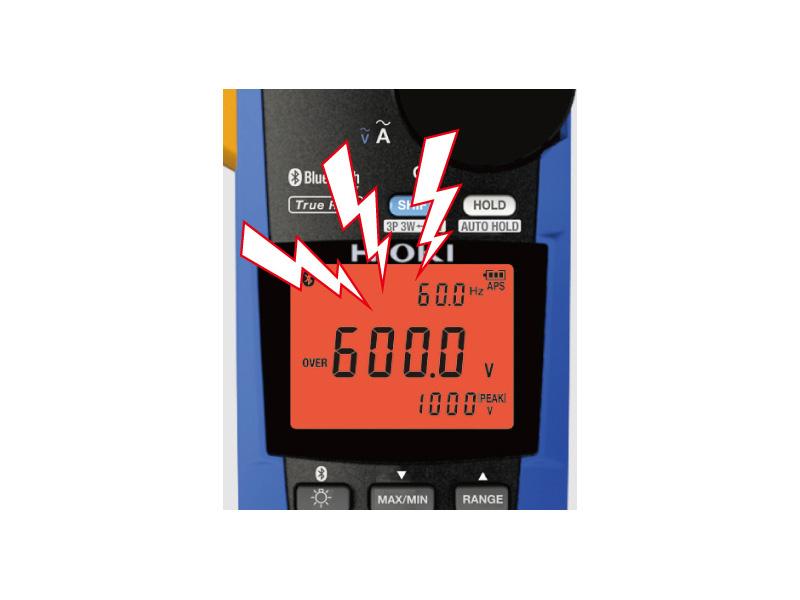

Double warnings with sound and light

When the clamp power meter detects excessively over current or voltage input during a continuity check, it alerts you with a red backlight and beeping tone in order to help prevent accidents.

Quickly check for unbalance

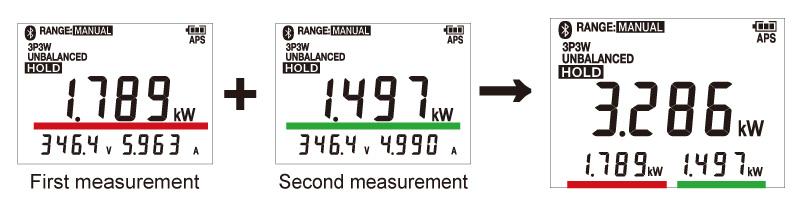

The CM3286 can measure unbalanced power in a 3-phase/ 3-wire circuit by measuring the single-phase power twice and then automatically adding the results. (The instrument can also measure 3-phase/4-wire circuits in three separate measurements.)

Easily check power supply fluctuations

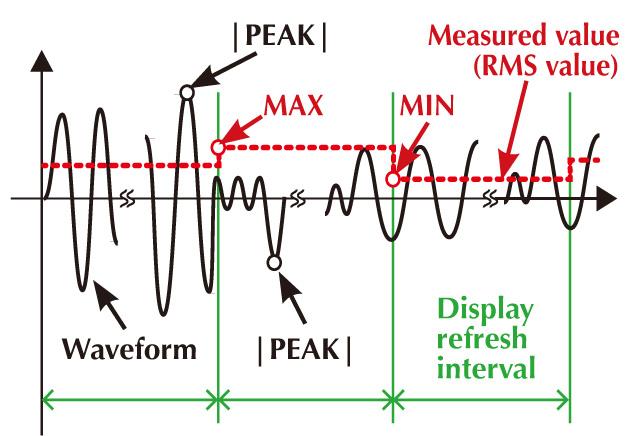

Since it can display maximum (MAX), minimum (MIN), and average (AVG) values, the CM3286 is useful when you need to ascertain the magnitude of fluctuations. And since it can also measure crest (PEAK) values, you can use it to check fluctuations at the crest value level.

Support for large-diameter, high-current measurement

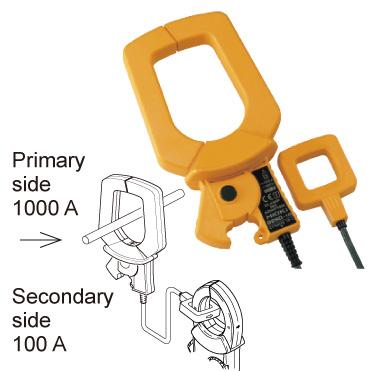

The CM3286 can be used with the optional Clamp On Adapter 9290-10 to measure busbars of up to 55 mm in diameter or 80 × 20 mm. Measure high currents of up to 1000 A AC (or 1500 A for up to 5 min.).

Accurately detect electricity theft

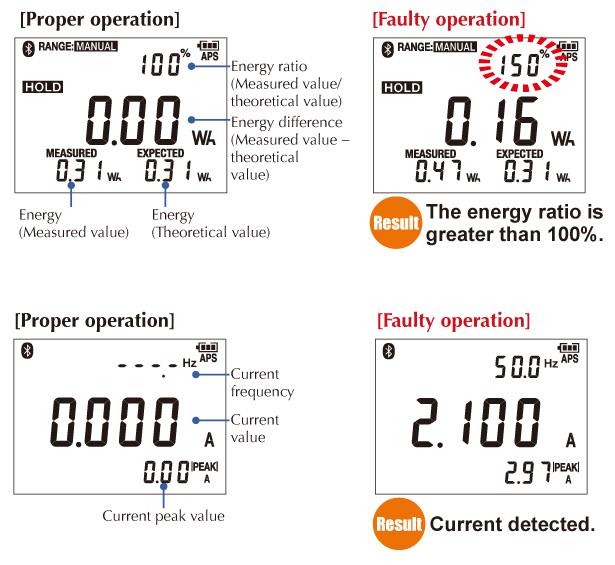

The CM3286 is ideal for verifying electricity theft since it can measure both AC power and current. ● Meter tampering: Detect by comparing electric meter readings and measurements Proper operation of electric meters can be confirmed by comparing meter readings and actual values. ● Direct theft: Detect by measuring current Electricity theft can be detected by measuring current on the power supply side of the illegal connection.

Electricity theft detection-and-report function (CM3286-01 only)

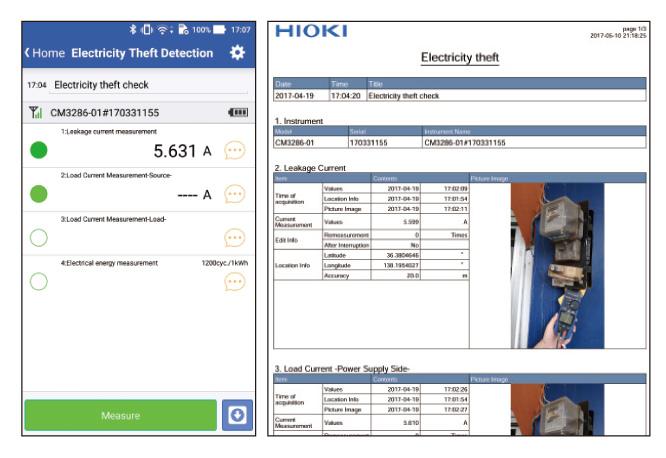

The instrument’s electricity theft detection-and-report function can be used to quickly and easily make measurements and generate reports (CM3286-01 only). Simply follow the measurement procedure to take measurements and photographs at four locations and the instrument will automatically generate a report, complete with photos. Since the report is generated automatically in the field based on captured measurement data, it’s impossible for others to alter the data.
