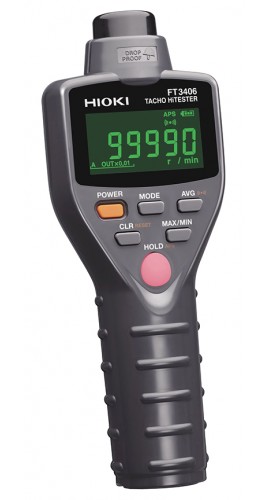

HIOKI FT3406 TACHO HiTESTER
Manufacturer: HIOKI Model: FT3406 Origin: Japan - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
- Measurement method
+ Non-contact: Using red visible-spectrum light and reflective tape
+ Contact: Using optional Contact Adapter
- Measurement ranges Non-contact, AVG=ON (option)
+ [r/min] (30.00 to 199.99) to (20000 to 99990)
+ [r/s] (0.5000 to 1.9999) to (200.0 to 1600.0)
+ [cycle (ms)] (0.6000 to 1.9999) to (200.0 to 1999.9)
+ [count] 0 to 999999
- Measurement ranges Contact, AVG=ON (option)
+ [r/min] (15.00 to 199.99) to (2000 to 19999)
+ [r/s] (0.2500 to 1.9999) to (200.0 to 333.00)
+ [cycle (ms)] (3.000 to 19.999) to (200.0 to 3999.9)
+ [count] 0 to 999999
- Measurement ranges Contact, AVG=ON
+ [cycle (m/min)] (1.500 to 19.999) to (200.0 to 1999.9)
+ [cycle (ms)] (0.0250 to 1.9999) to (20.00 to 33.30)
- Accuracy
+ Up to 9999 counts: ±1 dgt. (AVG=ON), ±10 dgt. (AVG=OFF)
+10000 counts or more: ±2 dgt. (AVG=ON), ±20 dgt. (AVG=OFF)
+ 20000 counts or more(r/min mode only) : ±20 dgt. (AVG=ON), ±100 dgt. (AVG=OFF)
Detection range: 50 mm to 500 mm (1.97" to 19.7")
Display refresh rate: Approx. 0.5 to 10 times/sec
Dustproof and waterproof: IP50 (EN60529)
Functions: (FT3406 only) [Analog output] 0 - 1 V f.s., Accuracy: ±2 % f.s., Output resistance: 1 kΩ
[Pulse output] 0 - 3.3 V, Output resistance: 1 kΩ
Use with the AC adapter possible
Functions MAX/MIN display, Display hold, Average, Auto power save, Buzzer, Drop proof (1m onto concrete surface)
Power supply LR6 alkaline battery ×2 (continuous use of 25 hours) or AC ADAPTER Z1004
Dimensions, mass 71 mm(2.80 in)W × 186 mm(7.32 in)H × 38 mm(1.5 in)D , 230 g (8.1 oz.)
Accessories LR6 alkaline battery ×2, Carrying case ×1, REFLECTIVE TAPE 9211 ×1 sheet (30pieces/12mm (0.47in) × 12mm (0.47in) per piece), OUTPUT CORD 9094 ×1
