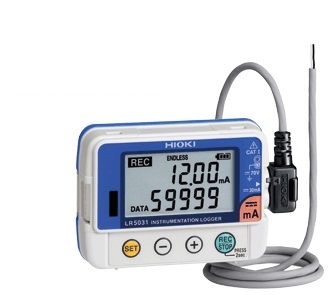

Hioki LR5031 CLAMP LOGGER

  • Manufacturer: HIOKI
    Model: LR5031
    • Request a Quotation Request a Quotation
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment



Manufacturer: Hioki
Model: LR5031
Made in: Japan


Specification
- Feature: Record 4-20 mA instrumentation signals, etc.
- Measurement items: For instrumentation / 0 to 20mA DC, 1ch
- Measurement range: DC -30.00 to 30.00mA
- Basic Accuracy:     ±0.5%rdg. ±5dgt. (@23°C±5°C)
- Waterproof and dustproof: IP54
- Operating temperature and humidity: -20°C(-4°F) to 70°C(158°F) , 80%rh or less
- Dimensions & Mass: 79x57x28mm,105g
- Power supply: LR6 (AA) Alkaline battery 1.5V × 1
- Battery life:
   + Case 1 : Approx. 2 years
   + Case 2: Approx. 2 months
- Accessories: CONNECTION CABLE LR9801×1, Kickstand LR6 (AA) Alkaline battery 1.5V×1, Instruction manual ×1, Operation manual×1
- The warranty Period: 12 month




Detail
Features Record 4-20 mA instrumentation signals, etc.
Measurement items For instrumentation / 0 to 20mA DC, 1ch
Measurement range DC -30.00 to 30.00mA
Basic Accuracy ±0.5%rdg. ±5dgt. (@23°C±5°C)
Waterproof and dustproof IP54 (splash-proof construction)
Operating temperature and humidity -20°C(-4°F) to 70°C(158°F) , 80%rh or less (non-condensating)
Dimensions & Mass Approx. 79mm(3.11in)W×57mm(2.24in) H×28mm(1.10in)D, 105g(3.7oz)
Power supply LR6 (AA) Alkaline battery 1.5V×1
Battery life Case 1 : Approx. 2 years
(1min. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C)
Case 2: Approx. 2 months
(1sec. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C)
Accessories CONNECTION CABLE LR9801×1, Kickstand LR6 (AA) Alkaline battery 1.5V×1, Instruction manual ×1, Operation manual×1
