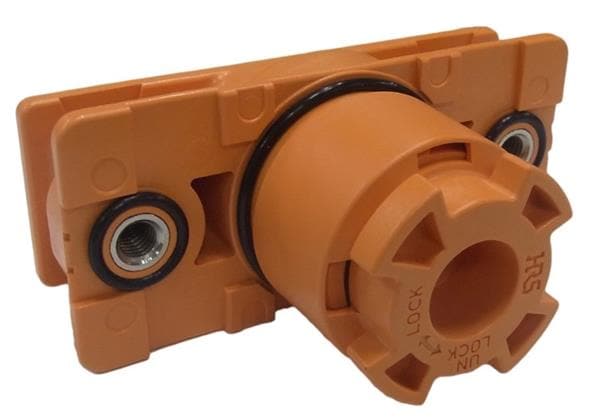

Hirose Electric EM30MSD-A(06) Plugs Service Plug, Gold plated of Signal contact, 200A, 1500V
Manufacturer: Hirose Electric Model: EM30MSD-A(06) - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Current Rating: +/- 1 A, +/- 200 A
Mounting Style: Panel Mount
Voltage Rating: 250 VAC/DC, 1.5 kVAC/DC
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Screw
Flammability Rating: UL 94 V-0
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
