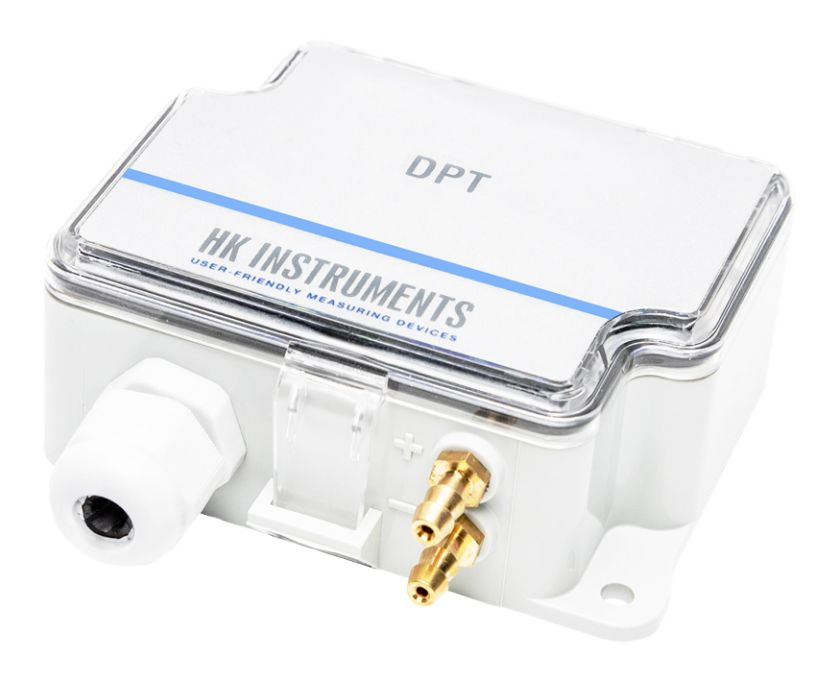

HK Instruments DPT-Priima-AZ-S Differential Pressure Transmitter (~1000Pa; with AZ& span point calibration)
Manufacturer: HK Instruments Model: DPT-Priima-AZ-S P/N: 103.039.003 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Measurement accuracy (from applied pressure): 0.4 % ±0.4 Pa
Measuring ranges (Pa): -25...+25 / -50...+50 / -100...+100 / -500...+500 / 0...25 / 0...50 / 0...250 / 0...1000
Zero point calibration: automatic with autozero element (-AZ) or by pushbutton
Measuring units: Pa, kPa, mbar, inchWC, mmWC, psi
Measuring element: MEMS, no flow-through
Supply voltage: 24 VDC ±10 % / 24 VAC ±10 %
Power consumption: < 1.0 W (< 1.2 W with output current 20 mA)
Output signals (3-wire): 0/2…10 VDC; 4…20 mA
Operating temperature: -5…50 °C
Response time: 0.4 / 8 s
Protection standard: IP54
With AZ& span point calibration
