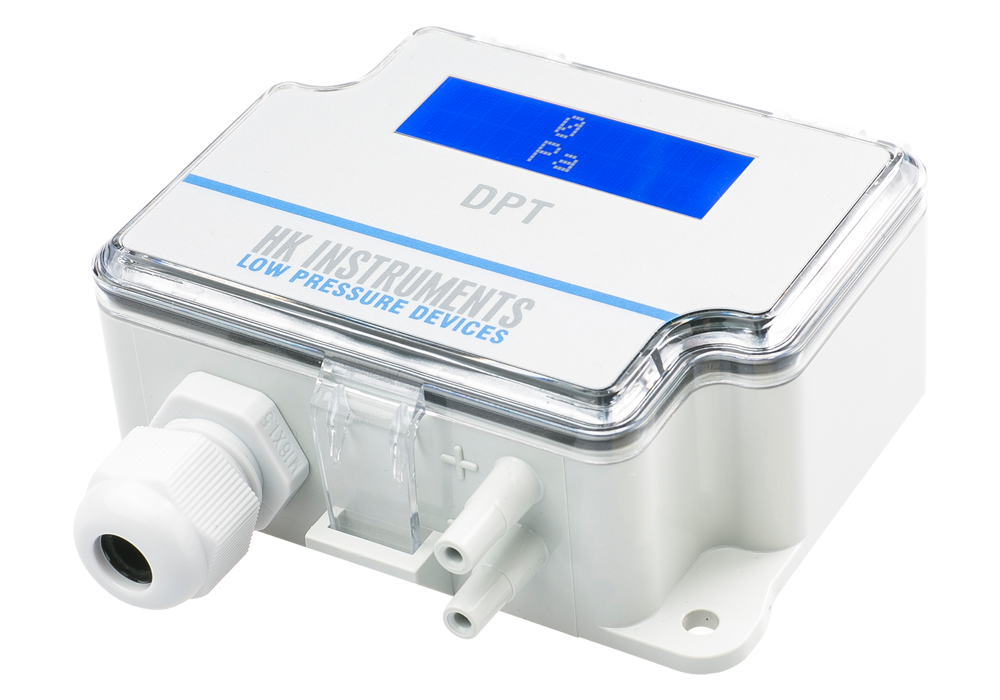

HK Instruments DPT2500-R8-D Differential Pressure Transmitter (0–2500Pa; with display)
Manufacturer: HK Instruments Model: DPT2500-R8-D P/N: 103.007.024 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Measurement ranges (Pa): 0–2500Pa
Accuracy (from applied pressure): Pressure < 125 Pa = 1 % + ±2 Pa; Pressure > 125 Pa = 1 % + ±1 Pa
Zero point calibration: automatic with autozero element (-AZ) or by pushbutton
Measuring units: Pa, kPa, mbar, inchWC, mmWC, psi
Measuring element: MEMS, no flow-through
Supply voltage: 24 VDC ±10 % / 24 VAC ±10 %
Power consumption: < 1.0 W (< 1.2 W with output current 20 mA)
Output signals (3-wire): 0/2…10 VDC; 4…20 mA
Operating temperature: -20…50 °C (with autozero calibration -5...50 °C)
Response time: 0.8 / 8 s
Protection standard: IP54
With display
