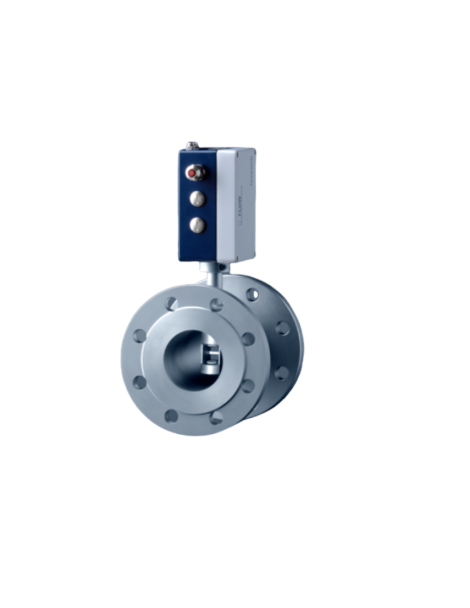

Hoentzsch VA Di 100 Vortex Flow Sensors (Order code: VA Di 100GH40m/s/p10ZG1, 1131 m3/h, hastelloy)
Manufacturer: Hoentzsch Model: VA Di 100 P/N: B015/039 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
With integrated transducer UVA (output 4-20 mA or 0-10 V)
Dimension:
tube inside Ø Di [mm]: 100
flange outside Ø D [mm]: 220
flange thickness b [mm]: 20
hole circle Ø k [mm]: 180
hole Ø d [mm]: 18
no. of holes: 8
sensor length [mm]: 200
sensor height H [mm]: 286
sensor weight [kg]: 15
Medium: gases
Materials in contact with the medium: Hastelloy 2.4610 (HC4), ceramics
Measuring range:
flow rate [m³/h]: 11.0 ... 1131
average flow velocity [m/s]: 0.4 ... 40
Max. working pressure: up to 10 bar / 1 MPa overpressure
For more details, see datasheet.
