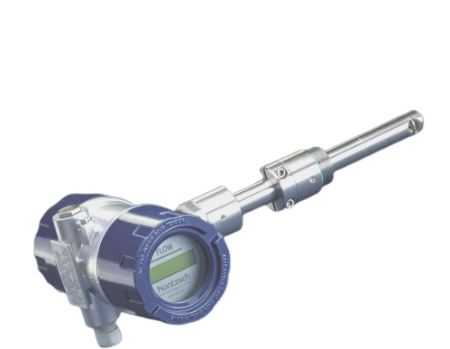

Hoentzsch ZS25 ZG5 Ex-d Vane Wheel Flow Sensor (Order code: ZS25/25-650GFT/370/p10/ZG5 Ex-d, -40 ... +370 °C , 650mm)
Manufacturer: Hoentzsch Model: ZS25 ZG5 Ex-d P/N: B002/294 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Sensor type/ Diameter: Vane wheel flow sensor ZS25 with sensor Ø 25 mm and shaft Ø 25 mm
Sensor length: 650mm
Medium: air/gases and water/liquids
Material in contact with the medium: titanium 3.7035 (Grade 2), ceramics Al2O3 99.9 %, pure graphite seal
Permissible temperature of the medium:
-40 ... +370 °C (c)
-40 ... +400 °C (s)
Ambient temperature: -20 ... +60 °C
Maximum working pressure: up to 10 bar / 1 MPa kPa overpressure
Design: see datasheet
ATEX protection:
for gas : X II 1/2 G Ex ia/db eb [ia] IIC T6 Ga/Gb
for dust : X II 1/2 D Ex ia/tb IIIC TX Da/Db
sensor : Category 1 (Zone 0 or 20)
transducer housing : Category 2 (Zone 1 or 21)
For more details, see datasheet.
