Hoentzsch ZS25 Vane Wheel Flow Sensor (Order code: ZS25/25-350GFE/100/p10/ZG4, -20 ... +100 °C, 350mm)
Manufacturer: Hoentzsch Model: ZS25 P/N: B002/191 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Separate evaluation unit

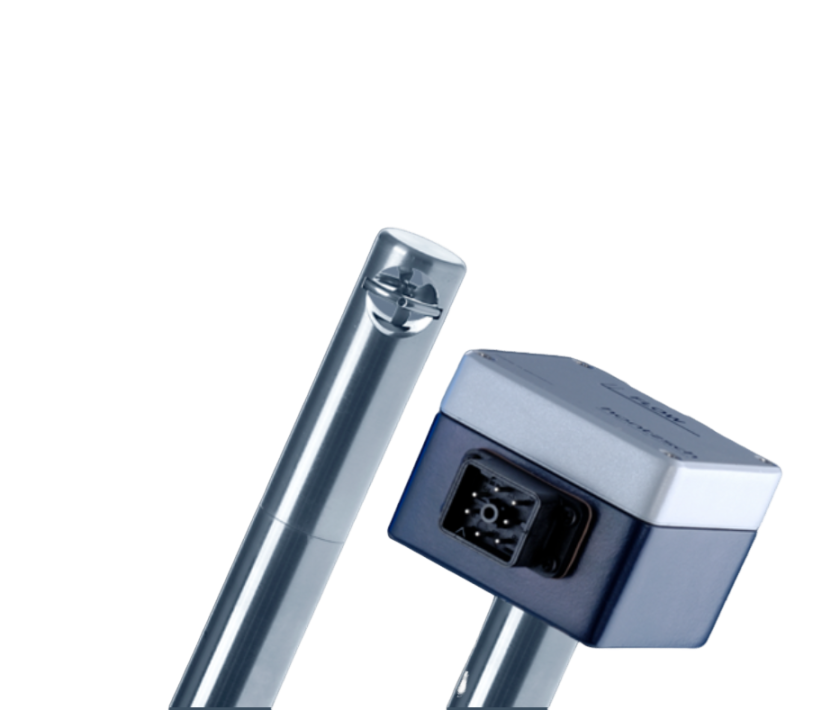

Sensor type: Vane wheel flow sensor ZS25 with sensor Ø 25 mm and shaft Ø 25 mm
Sensor length dimension C: 350mm
Medium: air/gases and water/liquids
Materials in contact with the medium: stainless steel 1.4404 / AISI 316L, ceramics Al2O3 99.9 %,VITON®, PTFE seal
Permissible temperature of the medium: -20 ... +100 °C (continuous)
Permissible temperature of the ambience: -40 ... +80 °C
Max. working pressure / Type of protection for sensor:
Up to 10 bar / 1 MPa kPa above atmospheric
Protection class IP68
Option:
CE II 3 G Ex ec IIC T6 Gc X Gas-Ex: Categorie 3G (Zone 2)
CE II 3 D Ex tc IIIC TX Dc X Dust-Ex: Categorie 3D (Zone 22)
CE II 2 G Ex ia IIC T6 Gb Gas-Ex: Category 2G (Zone 1)
Design: see datasheet for details
