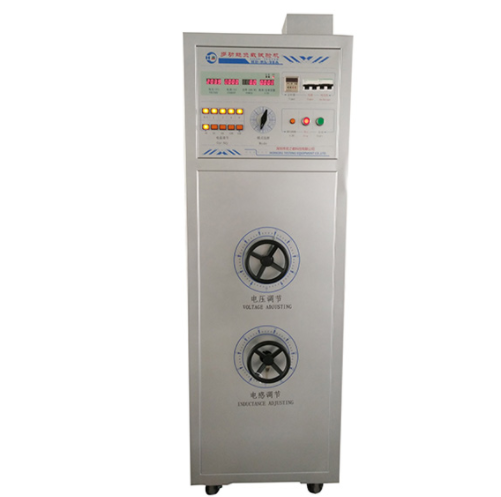

Hongdu HD-RL-32A Multi-function Load Bank (AC 0-40A, 50-290V)
Manufacturer: Hongdu Model: HD-RL-32A - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Input power: 220VAC±10%, 50/60Hz
Input current: AC 45A
Output current: AC 0-40A
Output voltage: AC 50-290V
Power factor: ￠1-￠0.3
Duration of current output: 30S
Voltage accuracy: ±(0.25% reading +0.25% range)
Current accuracy: ±(0.25% reading +0.25% range)
Power accuracy: ±(0.5% reading +0.5% range)
Power factor accuracy: ±0.02
Frequency accuracy ±0.2Hz
Overall dimensions: 650×1000×1900 (width depth height)
Weight: About 240Kg
