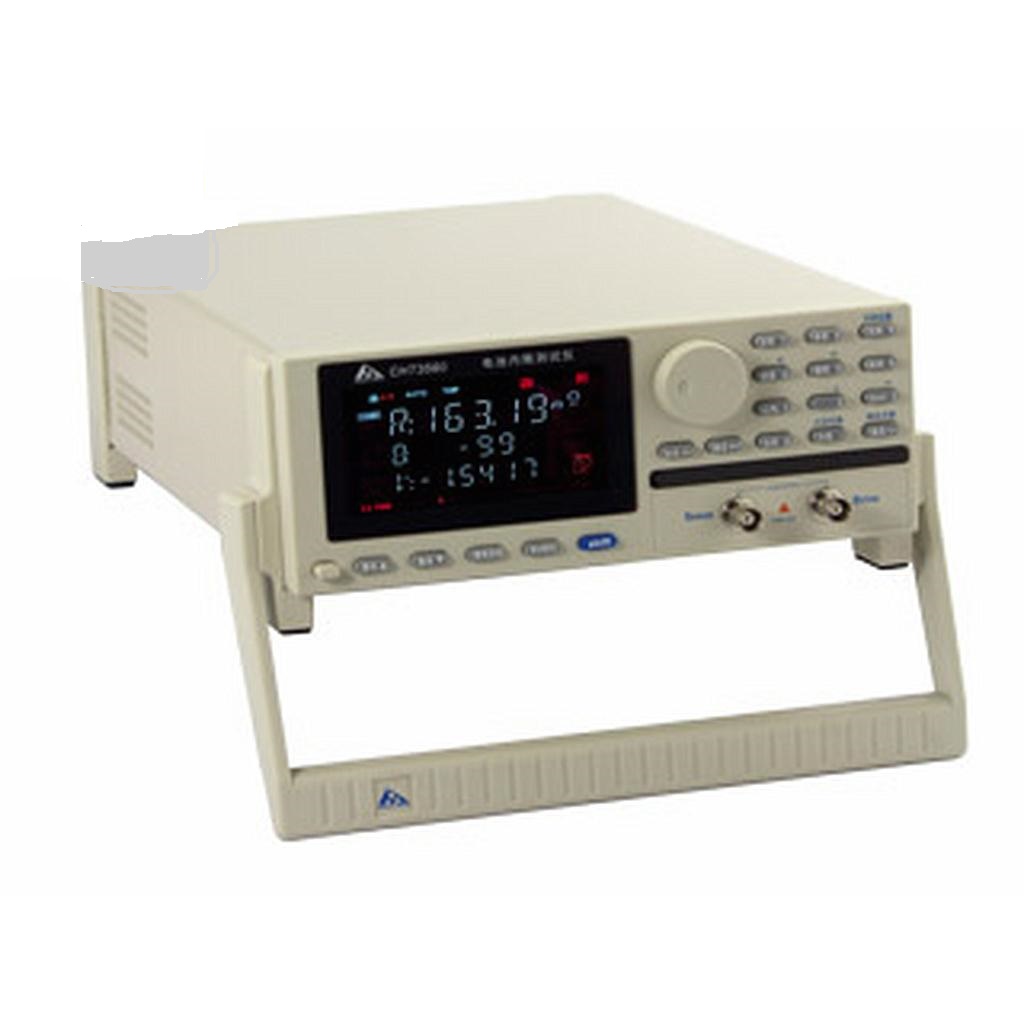

Hopetech CHT3560 Battery Tester (100V~60V, 0.05%, ESR, DCV, X, Z, , L )

  • Manufacturer: Hopetech
    Model: CHT3560
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manuafacturer: Hopetech
Model : CHT3560
Origin: China
Warranty : 12 month

-Measurement parameters: ESR, DCV, X, Z, , L
-Basic accuracy:
+Resistance: 0.3%
+Voltage: 0.05%
+Inductance:1%
-Measurement range:
+Resistance:1 ~ 3k;
+Voltage:100V~60V;
+Inductance :10nH~1H
-Signal Source:
+Measurement current frequency:1kHz;
+Open circuit voltage:<20mV;
+Test current:<10mA
-Range:
+Six different ranges-30m,300m,3,30,300,3K;
+Auto and manual modes are available in each range
-Measuring speed: 2 meas/sec.,8 meas/sec.,25 meas/sec.
-Result display: Direct read,ABS, %, , sorting results
-Maximum display value:
+Resistance:32,000;

+Voltage:60,000
- Power supply
+Voltage:198VAC~240VAC;
+Frequency: 47Hz~63Hz;
+Power: max 15VA
-Dimension & weight: 385mm(L)x249mm(W)x102mm(D);
-Weight: 3.5kg

Detail
CHT3560 battery tester is used to measure the internal resistance and voltage of batteries. The 3560 is applied to simultaneously measure the internal resistance and voltage of batteries and comparison of battery internal resistance and open-circuit voltage.

Equipment with its standard features RS232C and hander interfaces, CHT3560 offers automatic measurement on batteries and check the battery deterioration fast and precisely. CHT3560 can be used for product sorting delivery inspection in battery production lines.
CHT3560 main functions are compatible with HIOKI 3560 and Agilent 4338B.It offers high measurement speed and good stability.

Model

CHT3560

Measurement parameters

ESR, DCV, X, Z, θ, L

Basic accuracy

Resistance: 0.3%   Voltage: 0.05% Inductance:1%

Measurement range

Resistance:1μΩ ~ 3kΩ; Voltage:100μV~60V;Inductance :10nH~1H

Signal Source

Measurement current frequency:1kHz; Open circuit voltage:<20mV;Test current:<10mA

Range

Six different ranges-30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ;

Auto and manual modes are available in each range

Measuring speed

2 meas/sec.,8 meas/sec.,25 meas/sec.

Result display

Direct read, ΔABS, Δ%, θ, sorting results

Maximum display value

Resistance:32,000; Voltage:60,000

Calibration

Short-circuit reset for all ranges; REL function

Comparator

30 set of data records, NG-LO, GD-IN, NG-HI display and output. Beeper is adjustable.

Trigger mode

Internal/manual/external trigger

Interface

RS-232C, Handler (PLC interface)

Protocol

SCPI, MODEBUS(optional)

Power supply

Voltage:198VAC~240VAC;Frequency: 47Hz~63Hz; Power: max 15VA

Dimension & weight

385mm(L)x249mm(W)x102mm(D); Weight: 3.5kg

Accessories

CHT9350 Kelvin test wire,CHT9800RS232C interface cable,

Options

CHT9360 test probe

Others

Test leads damage detection function, four-color VFD display, keypad lock and data hold function
