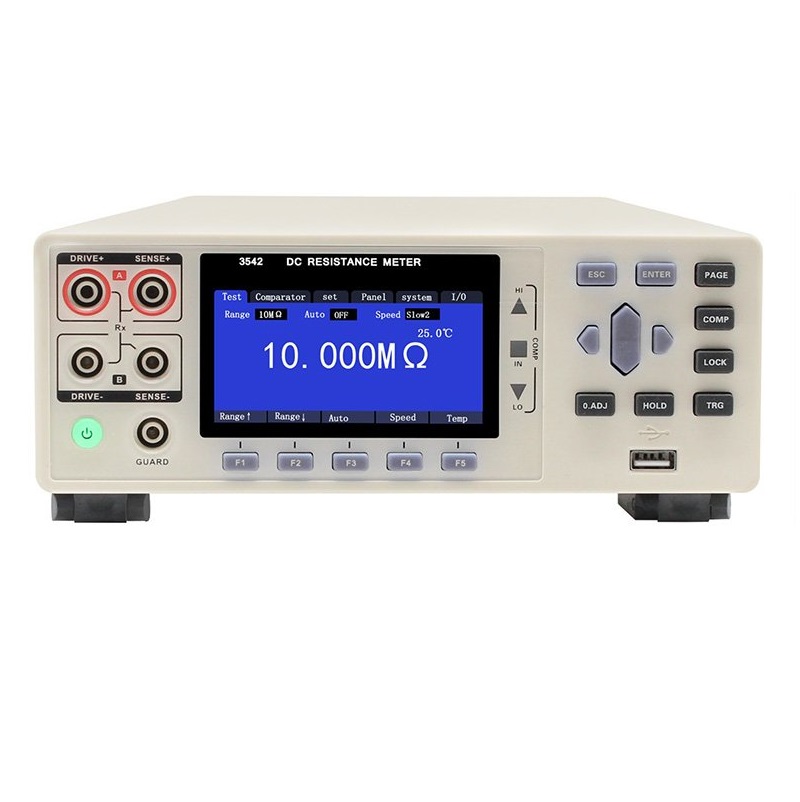

Hopetech HT3542-24 Multi-channel High Speed High Precision DC Resistance Meter (24-CH; 0.1uΩ~10MΩ; 0.01%; RS232/LAN/ I/O)

Channel No.: 24-channel

Display: 3.5 inch TFT-LCD

Measurement parameters: DC resistance

Resolution: 0.1μΩ

Test scope: 10mΩ~10MΩ,9 ranges

Measuring current: DC 1A-0.5uA

Measuring accuracy: ±0.01%rdg.±0.001%f.s.

Measuring speed: FAST(2.2ms), MED(50Hz:21ms,60Hz:18ms), SLOW1(102ms),SLOW2(202ms)

Measurement range: 20mΩ / 200mΩ / 2000mΩ / 20Ω / 200Ω / 2000Ω / 20kΩ / 200kΩ / 2000ΚΩ / 10ΜΩ

Signal source: 1A DC, Max:5.5V

Temperature range: -10℃~60℃; Accuracy:1℃

Humidity range: 23℃, less than 80RH

Calibration: Short-circuit reset for all ranges

Comparator: 10-bin sorting, output signal HIGH/IN/LOW

Data storage: Support with PC software and store in PC

Trigger: Internal, manual, bus trigger

Other: Test lead anomaly detection

Interface: External IO, LAN,RS-232

Power supply: Voltage:100VAC～256VAC; Frequency: 50Hz～60Hz; Rated power:15VA

Size & weight: 325mm*215mm*96.5mm(L*W*H) 2kg

Included accessories: HT9348 temperature probe, PB36 connector, HT9344 test clip, HT9800 communication cable, power cord
