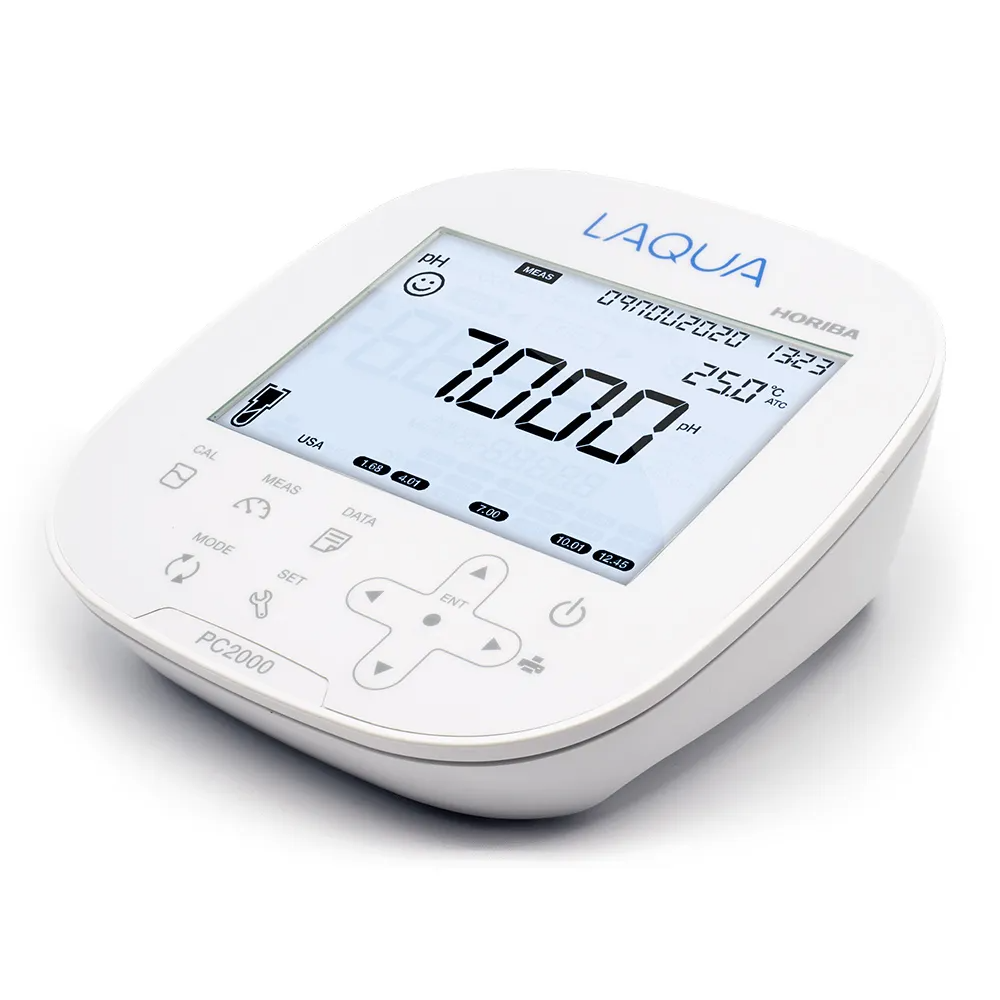

HORIBA PC 2000-S Benchtop pH/ORP/Ion/Conductivity Meter Kit (-2.000~20.000 pH)

pH Range: -2.000~20.000 pH

- Resolution: 0.1/0.01/0.001pH

- Accuracy: ±0.003pH

- pH Buffer Groups: USA, NIST, NIST2, DIN, Custom

- Calibration points: Up to 5 (USA, NIST, NIST2, Custom) / Up to 6 (DIN)

ORP Range: ± 2000.0mV

- Resolution: 0.1mV

- Accuracy: ±0.2mV

- Calibration option: Yes (Up to ± 200 mV)

Ion Range: 0.000 µg/L to 9999 g/L

- Units: µg/L ↔ mg/L ↔ g/L, ppm ↔ ppt, mmol/L ↔ mol/L

- Resolution: 4 Significant digits

- Accuracy: ± 0.3% full scale or ± 0.2 mV, whichever is higher

- Calibration Points: Up to 5

Conductivity Range: 0.000 to 1.999 µS/cm (k = 0.1)

                                    2.00 to 19.99 µS/cm (k = 0.1, 1)

                                    20.0 to 199.9 µS/cm (k = 0.1, 1, 10)

                                    200 to 1999 µS/cm (k = 0.1, 1, 10)

                                    2.00 to 19.99 mS/cm (k = 0.1, 1, 10)

                                    20.0 to 199.9 mS/cm (k = 1, 10)

                                    0.200 to 2.000 S/cm (k = 10)

- Units: Auto ranging S/cm, S/m (µS ↔ mS ↔ S)

- Resolution: 0.05% full scale

- Accuracy: ± 0.6% full scale; ± 1.5% full scale > 18.0 mS/cm

- Reference temperature: 15.0 to 30.0 °C (adjustable)

- Temperature coefficient; 0.00 to 10.00 % per °C (adjustable)

- Cell constants: 0.070 to 13.00 (adjustable)

- Calibration points: Up to 4 (Auto) / Up to 5 (Manual)

Resistivity range: 0.001 MΩ・cm to 20.0 MΩ・cm

- Resolution: 0.5% full scale

- Accuracy: ± 0.6% full scale; ± 1.5% full scale > 1.80 MΩ・cm

Total Dissolved Solids (TDS) Range: 0.01 to 9.99 mg/L (ppm)

                                                               10.0 to 99.9 mg/L (ppm)

                                                               100 to 999 mg/L (ppm)

                                                               1.00 to 9.99 g/L (ppt)

                                                               10.0 to 100 g/L (ppt)

- Resolution: 0.01, 0.1, 1 mg/L ↔ g/L (ppm ↔ ppt)

- Accuracy: ± 0.1% full scale

- TDS Curves: EN27888, 442, NaCl, Linear (0.40 to 1.00)

Salinity range: 0.0 to 100.0 ppt / 0.00 to 10.00 %

- Resolution: 0.1 ppt / 0.01%

- Accuracy: ± 0.2% full scale

- Salinity curves: NaCl / Seawater

- Calibration option: Yes (Manual; 1 point)

Temperature range: -30.0 to 130.0°C / -22.0 to 266.0°F

- Resolution: 0.1 °C / °F

- Accuracy: ± 0.5 °C / ± 0.9 °F

- Calibration option: Yes (± 10.0 °C / ± 18.0 °F range in 0.1 °C increments)

Memory: 2000

Auto Data Log: Yes

Real-time Clock: Yes

Date & Time Stamp: Yes

Measurement modes: Auto Stable / Auto Hold / Real Time

Offset & Slope Display: Yes (Segment & Average Slopes)

Calibration Alarm: Yes (Programmable: up to 90 days)

Auto shut-Off: Yes (Programmable: up to 30 mins.)

Electrode status: On screen display

Diagnostics: Yes

Password setting: Yes

Software upgrade: Yes

PC / Printer communication: Phono jack (USB / RS232C)

Meter Inputs: 2 x BNC, 2 x phono (ATC), DC sockets

Display: 5" Custom LCD with backlight and 320 segments

Power requirement: AC adaptor 100 - 240V, 50 - 60Hz

Dimensions & Weight: 155(L) x 150(W) x 67(H) mm, 770g
