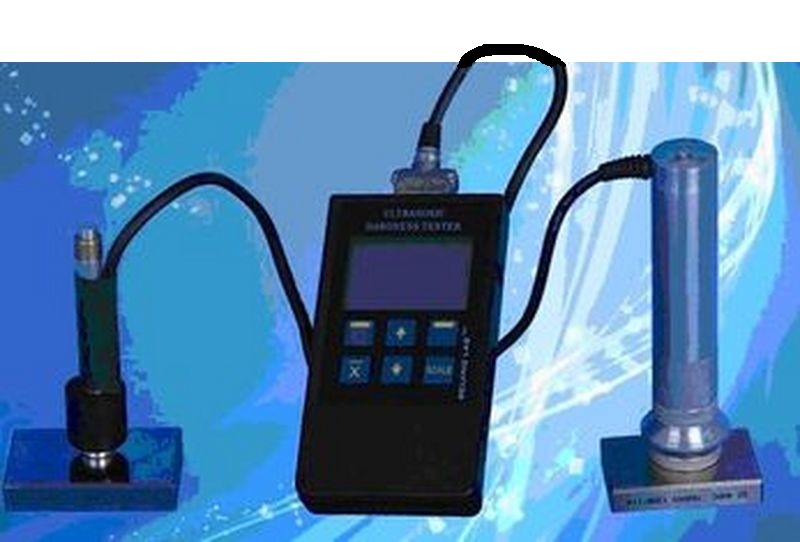

Huatec HUH-2 Ultrasonic Portable Hardness Tester





Product information:

It is intended for measuring hardness of metal and alloy articles with Rockwell, Brinell, Vickers. It consists of the dynamic transducer (sensor) and the electronic module.
The principle of tester operation is based on determination of frequency change in free oscillation of the indenter (an acoustic resonator with Vickers diamond pyramid) subjected to the constant force of 50 N.

Advantages:

1. measuring hardness of both small and large articles
2. measuring hardness of complexly shaped articles, with hard to reach places, in various spatial positions
3. convenience and ease of use
4. PC-connectable via RS-232C interface
5. high measuring performance
6. power source discharge indication and display illumination
7. graphical display with  lighting
8. storing 6000 hardness measurements in the nonvolatile memory
9. supply of reference blocks on request

Main technical parameters

Hardness measurement ranges Rockwell Scale   Brinell Scale   Vickers Scale Tensile strength, MPa	20 - 70 90 - 450 230 - 940 370 - 1740
Relative measurement error Rockwell Scale   Brinell Scale   Vickers Scale	± 1 ± 3% ± 3%
Chief dimensions	120x60 x25 mm
Category temperature range° C	-5 - +40
Power supply	2 AA batteries
Time of continuous work hours	not less than 100 Hours
Weight of electronic module with sensor	0.9kg



Parameters for Ultrasonic hardness probe and Leeb hardness probe

	Ultrasonic hardness probe	Leeb hardness probe
Length	160mm	140mm
Diameter	25mm	25mm
Indention depth	30μm	300 μm
Test force	14.7N	11Nm
Probe testing life	200,000 times	50,000 times
Min.testing thickness (steel)	1mm	12mm
Min. testing radius	5mm	10mm
Max.surface roughness	Ra 2.5 μm	Ra 3.2 μm
Data memory	1000 datas	100 datas
Tesing time	4 second	2 second



Standard delivery

1. Hardness tester   1pc

2. Ultrasonic hardness probe 50N(optional probe 10Nand 100N) 1pc

3. Leeb hardness probe 1pc  (HUH-2 only)

4. Instruction manual 1pc

5. Probe cable      1pc

6. Battery charger   1pc

7. Carrying case     1pc

8. Hardness block    2pcs
