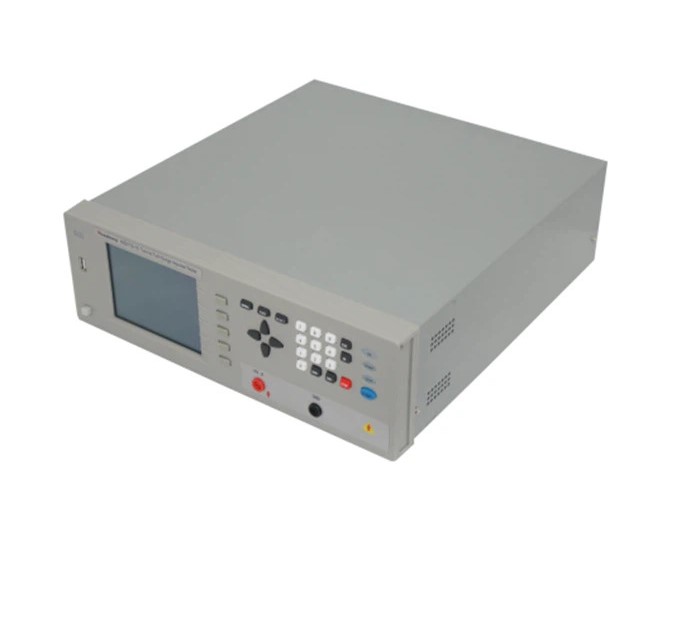

Huazheng HZ211S-10 Turn To Turn Surge Withstand Voltage Tester

Number of channels: 1 channel

Range of pulse voltage: 1KV-10KV

Accuracy of pulse voltage: ±5%±50V

Step of pulse voltage: 200V

Measurement speed: Approx. 5 times/s

High-voltage power supply control: Switching power supply is controlled by MCU

Numbers of impulses: Single EXT (1-29 times); continuous INT

Trigger mode: Manual, Foot control, PC

Detection and judgment mode: Area; differential area; corona discharge quantity; phase

Sound mode: "Up to standard" sound; "Not up to standard" sound; mute

Storage capacity of waveform: 100 waveforms and their parameters

Waveform resolution: A/D: 8 bit; sampling speed: 25nS (40MHz); point number of waveform: 250

LCD: Resolution: 320 x 240; 5.1 inches; white letters on a blue background

Dimension: 400(W)×132(H)×430(D)

Weight: Approx. 10Kg

Environment condition:

- Operating temperature:10℃-30℃; Operating humidity: 20%-80% RH

- Storage temperature: 5℃-40℃; storage humidity: 5%-90%RH

Special functions and parameters: Customized according to user requirements
