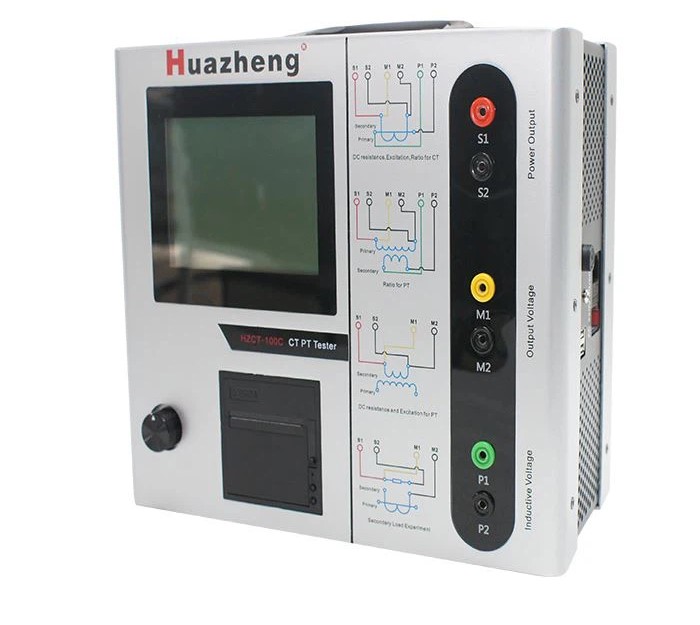

Huazheng HZCT-100C CT PT Knee Point Test Set
Manufacturer: Huazheng Model: HZCT-100C - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Usage: CT & VT
Output: 0~180Vrms,12Arms,18A(peak value)
CT Ratio:
Range: 1~40000
accuracy: ±0.05%
PT Ratio:
Range: 1~40000
accuracy: ±0.2%
Phase:
Range: ±5min
accuracy: 0.5min
DC resistance:
Range: 0~300Ω
accuracy: 2%±2mΩ
Burden:
Range: 0~300VA
accuracy: 2%±0.2VA
Power supply: AC220V±10%,50/60Hz
