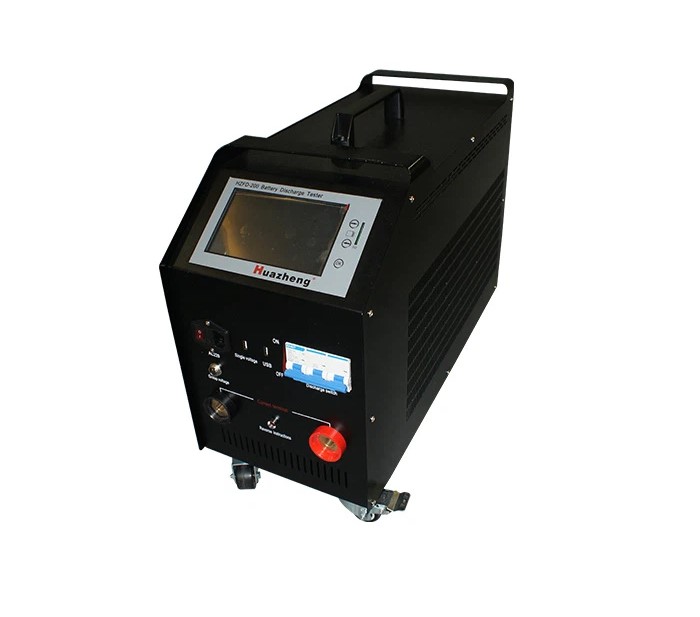

Huazheng HZFD-200 Battery Discharge Capacity Tester
Manufacturer: Huazheng Model: HZFD-200 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Single voltage test type: 2V/6V/12V
Single voltage test range: 2V:0~4V 6V:0~8V 12V:0~15V
Single voltage resolution: 2V/6V:0.001V 12V:0.01V
Whole set voltage test range: 220V: 195V~270V
Whole set voltage resolution: 0.01V
Voltage test precision: 0.5%
Discharging range: 2~300A can be set continuously, over 300A we need the extra loading
Constant discharging voltage range: 220V: 195V~270V
Discharging control precision: 0.1A
Current test precision: 1%
Working voltage: AC 220V
Radiation: Air cooling
Communication: RS485 Communication and SD card communication
Display: 7” colorful LCD touch screen
