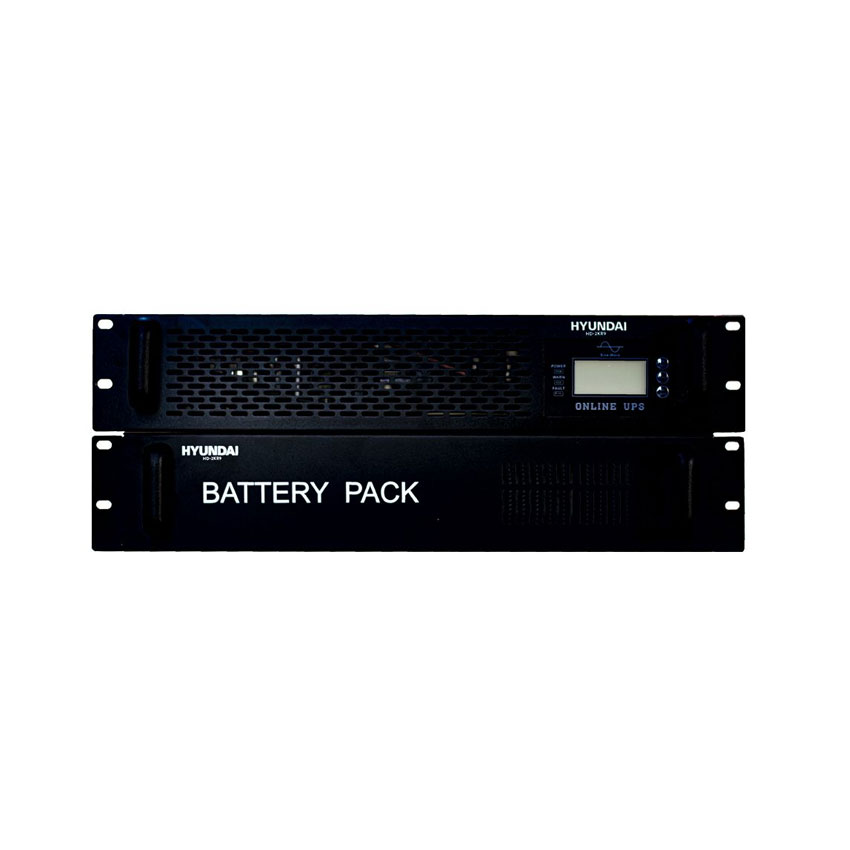

Hyundai HD-3KR9 Online Uninterruptible Power Supply (3KVA/2.7Kw)
Manufacturer: Hyundai Model: HD-3KR9 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Specifications
Rated power (KVA/KW): 3/2.7
Noise level (dBA): 60
Input specification
Nominal voltage (VAC): 220
Voltage range (VAC): 110-300
Frequency range (Hz): 40-70
Number of phases: 1
Output specification
Voltage (VAC): 208/220/230/240 (±1%VAC)
Frequency (Hz): Line mode (50/60 Hz ± 4); Battery mode (50/60 ± 0.2Hz)
Switching time (second): 0 second, switch from inverter to bypass and vice versa after 4 second
Waveform: Standard sine wave
Connection port
Communication port: RS-232
Battery
Quantity and type: 8 x 12VDC
Power backup time (100% load): 7-9 minutes
Dimension & Weight
Product dimensions (mm): 465 x 480 x 88 (L x W x H)
Weight: 28kg
Operating environment
Operating temperature: 0ºC – 40ºC
Humidity: 20 – 95% without condensation
