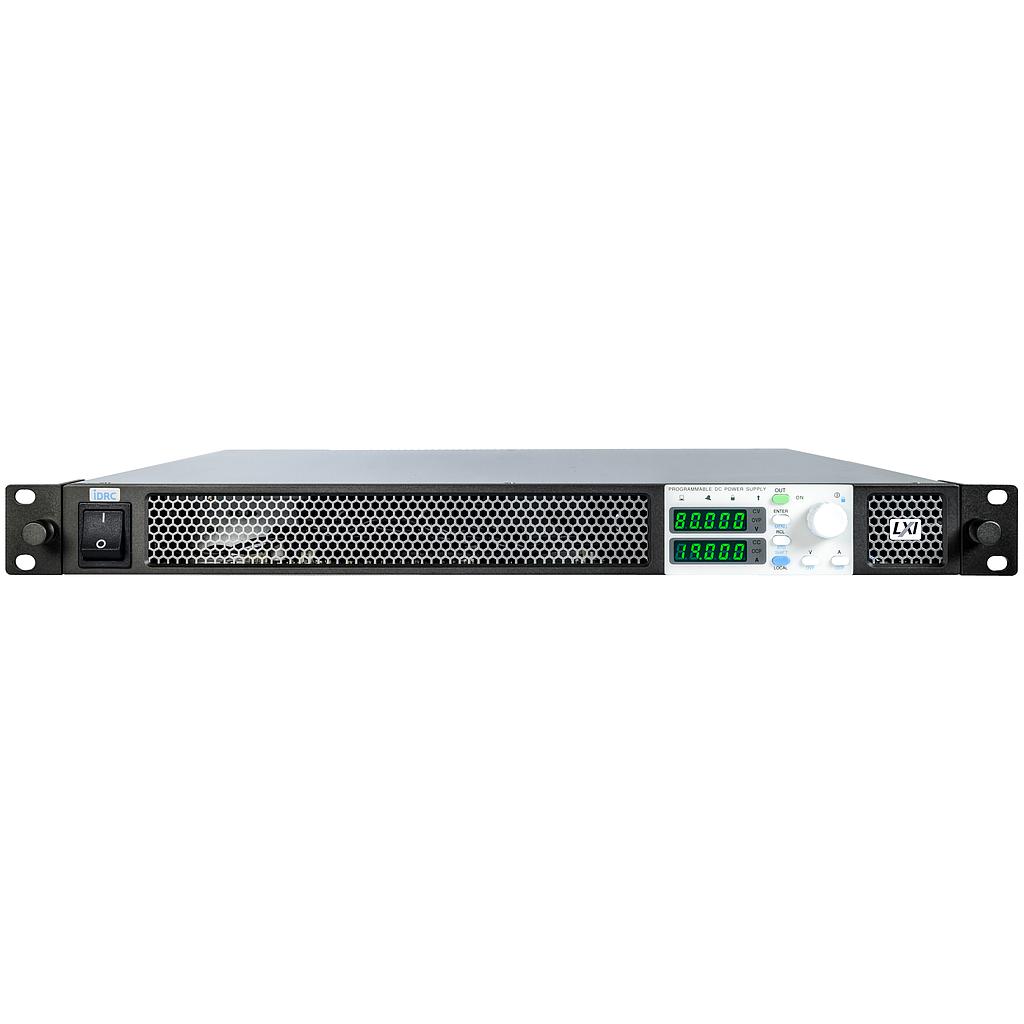

iDRC DSP-300-005HR Programmable DC Power Supply (1500W, 300V, 5A)
Manufacturer: iDRC Model: DSP-300-005HR - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Output power: 1500W
Output
Voltage: 0 - 300 V
Current: 0 - 5 A
Input
Input voltage: 100~240Vac, 50/60Hz
Input current (Full load): 115Vac - 16.2A ; 230Vac - 8.1A ;
Inrush current: 230Vac <33A
Line regulation
0.05%+mV: 32
0.1%+mA: 2.5
Load regulation
0.05%+mV: 32
0.1%+mA: 6
Efficiency: 77% ‒ 88% ;
Power Factor (PF): 0.99 (at 115Vac, rate output)
Withstand voltage
Input-Output - AC2000V:1 minute
Input-Ground - AC2000V:1 minute
Weight: 1U type : approx. 9.0 kg
Noise: <70 dB(A)
Operating environment: Temperature : 0~50℃ ; Humidity : 30%~90% RH(no condensation)
Storage environment: Temperature : -20~70℃ ; Humidity : 10%~90% RH (no condensation)
