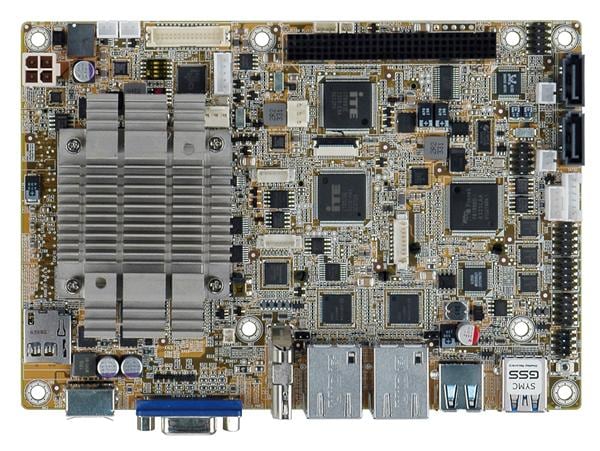

IEI Technology NANO-BT-i1-J19001-R11 Single Board Computers EPIC SBC supports Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA, mSATA , COM, iRIS-1010, audio and RoHS
Manufacturer: IEI Technology Model: NANO-BT-i1-J19001-R11 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Core: Celeron J1900
Frequency: 2 GHz
Dimensions: 165 mm x 115 mm
Form Factor: EPIC
Memory Type: DDR3L
Unit Weight: 614.203 g
Cache Memory: 2 MB
Installed RAM: 0 GB
Interface Type: Audio, Ethernet, HDMI, LVDS, mPCIe, PC/104, PS/2, RS-232/422/485, SATA, SMBus, USB 2.0, USB 3.2, VGA
Processor Type: Celeron J1900
Processor Brand: Intel
Description/Function: EPIC SBC support Intel 22nm quad core J1900
Maximum RAM Capacity: 8 GB
Battery Backup Switching: No Backup Battery
Operating Supply Voltage: 12 V
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 20 C
