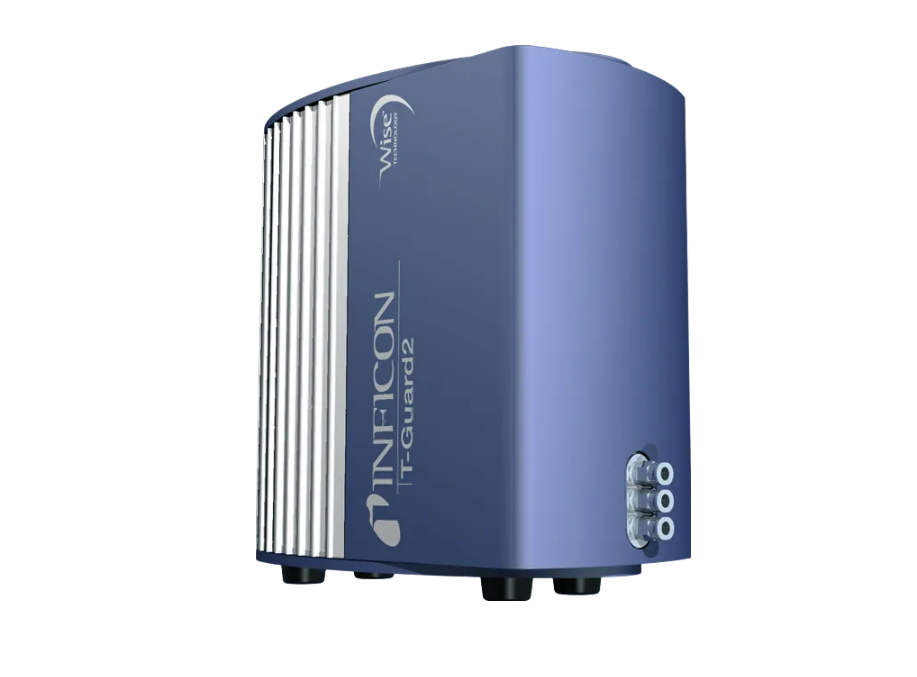

INFICON T-Guard2 Leak Detection Sensor
Manufacturer: INFICON Model: T-Guard2 P/N: 540-200 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Minimum detectable helium leak rate: 1 x 10^-6 mbar l/s
Measurement range: 5 decades
Test chamber pressure: 1 atm
Maximum carrier gas flow: 1,000,000 sccm
Probe gas flow Fine / Gross: 180 sccm / 90 sccm
Time constant of the leak rate signal: < 1 s
Helium sensor: Wise TechnologyTM
Run up time: < 3 min
Hose connectors: 6 mm
Control inputs: 6 x PLC compatible (max. 35 V)
Status / Trigger outputs: 8 x relay contacts (max. 25 V AC / 60 V DC / 1 A)
Chart recorder output lin/log: 2 x 0-10 V, programmable
Power supply demand / power consumption: 24 V DC / 100 W
Type of protection: IP20
Dimensions (L x W x H): 272 x 130 x 272 mm; 10.7“ x 5.1“ x 10.7“
Weight: 6.8 kg / 15 lbs
Noise level dB (A): < 56
Recommended fore pump: two-stage diaphragm
