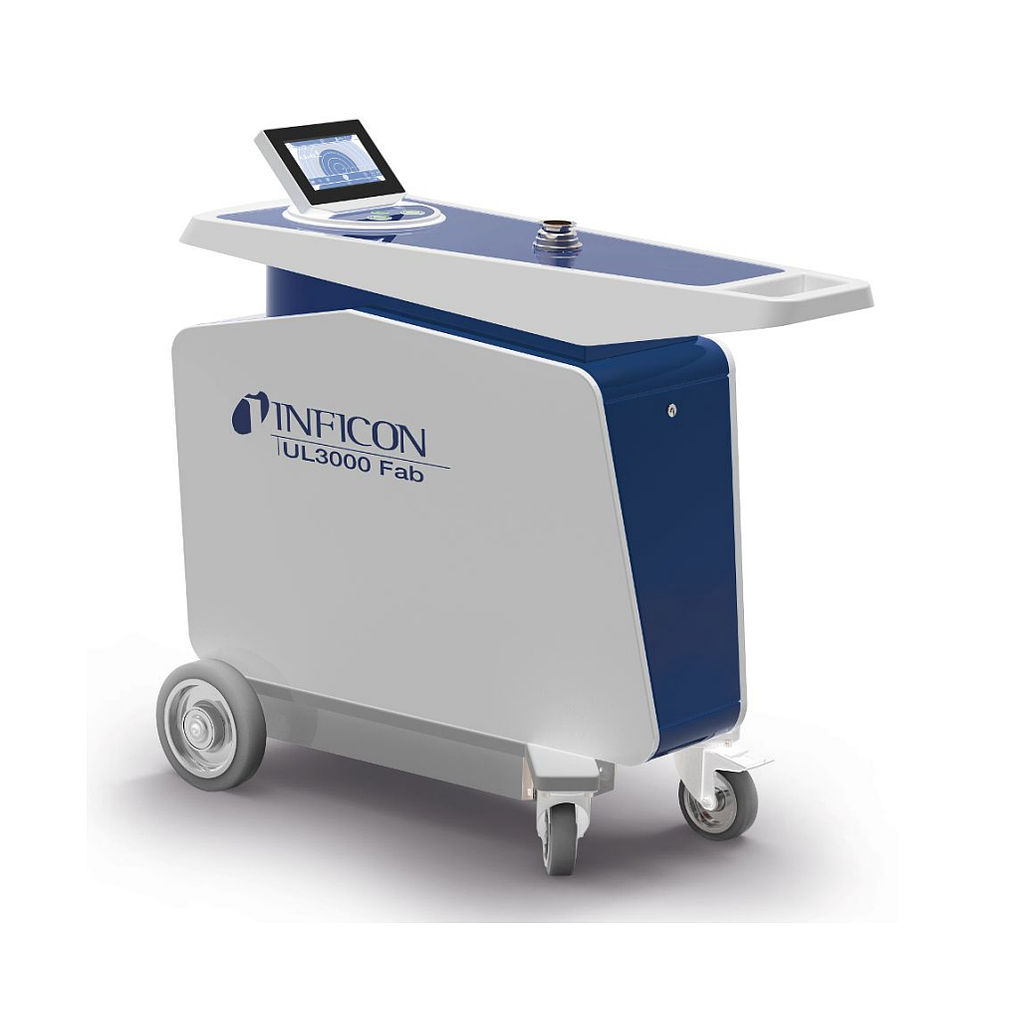

INFICON UL3000 Fab Mobile Helium Leak Detector
Manufacturer: INFICON Model: UL3000 Fab P/N: 550-200 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Min. detectable leak rate for helium (vacuum method): <5 x 10^-12 mbar l/s
Min. detectable leak rate for helium (sniffer mode): <5 x 10^-8 mbar l/s
Max. inlet pressure (MASSIVE mode): 1000 mbar
Pumping speed during evacuation: >32 m³/h
Helium pumping speed (high sensitive mode ULTRA): 4 l/s
Response time: <1 s
Time until ready for operation: <3 min
Detectable masses (ULTRATEST Sensor Technology) 2, 3, 4 (H2, 3He, He)
Ion source: 2 filaments, iridium/yttria oxide coated
Test port: DN 25 KF
Adjustable triggers: 4
Interface: 2 x USB, Ethernet / LAN
Supply voltage: 100 to 240 V 50/60 Hz (AC)
Power consumption: typ. 700 VA, max. 1500 VA
Dimensions (L x W x H): 1050 x 472 x 987 mm (42 x 21 x 34 in.)
Weight: 118 kg
Permissable ambient temperature range (during operation): 10 to 40°C
