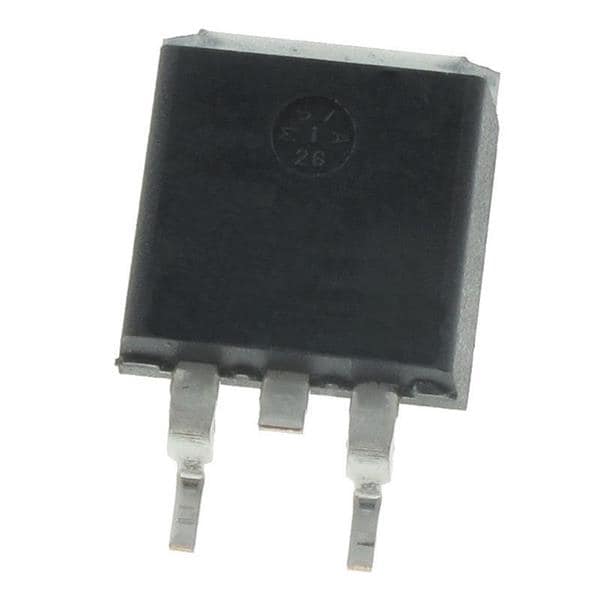

Infineon IPB60R600CP 600 V CoolMOS C6 Power Transistor N-Ch 600V 6.1A D2PAK-2 CoolMOS CP
Manufacturer: Infineon Model: IPB60R600CP - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 9.25 mm
Height: 4.4 mm
Length: 10 mm
Fall Time: 17 ns
Rise Time: 12 ns
Technology: Si
Unit Weight: 4 g
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel
Qg - Gate Charge: 21 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 60 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 17 ns
Typical Turn-Off Delay Time: 75 ns
Id - Continuous Drain Current: 6.1 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 600 mOhms
Vds - Drain-Source Breakdown Voltage: 600 V
Vgs th - Gate-Source Threshold Voltage: 3.5 V
