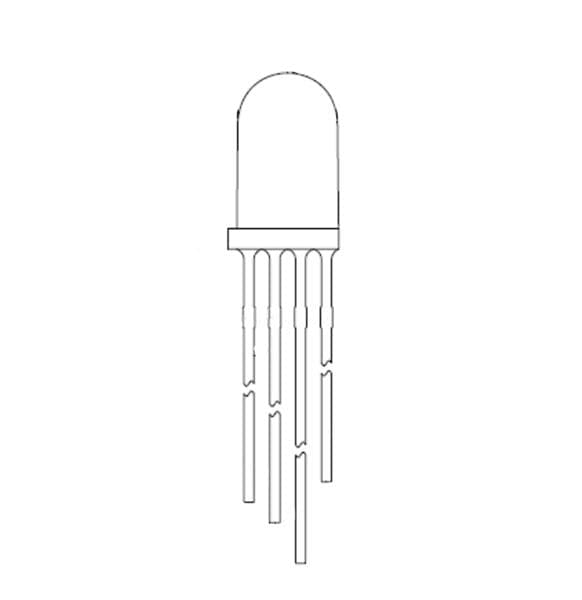

Inolux HV-5RGB25 Multi-Color LEDs RGB LED
Manufacturer: Inolux Model: HV-5RGB25 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 5.85 mm
Height: 8.65 mm
Length: 5.85 mm
LED Size: T-1 3/4 (5 mm)
Lens Color: Colorless
Lens Shape: Dome
Unit Weight: 534.115 mg
Power Rating: 65 mW
Configuration: Common Cathode
Viewing Angle: 25 deg
Mounting Style: Through Hole
Lens Dimensions: 5 mm
Lens Transparency: Diffused
Illumination Color: RGB
Luminous Intensity: 3200 mcd, 4000 mcd, 2000 mcd
If - Forward Current: 20 mA
Vf - Forward Voltage: 2 V, 3.4 V, 3.4 V
Wavelength/Color Temperature: 632 nm, 520 nm, 470 nm
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 40 C
