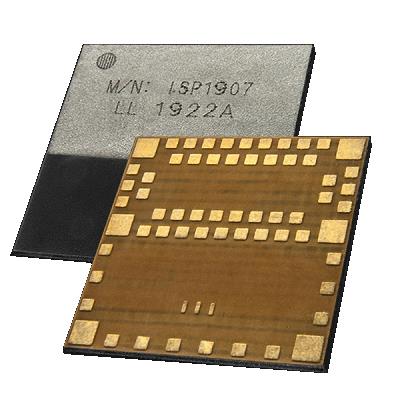

Insight SiP ISP1907-HT-ST Bluetooth Modules Built-in Antenna Bluetooth 5.1 Direction Finding Modules
Manufacturer: Insight SiP Model: ISP1907-HT-ST - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Core: ARM Cortex M4
Range: 400 m
Width: 8 mm
Height: 1 mm
Length: 8 mm
Antenna: Built-In
Protocol: Bluetooth 5.1
Data Rate: 2 Mb/s
Frequency: 2.43 GHz
Dimensions: 8 mm x 8 mm x 1 mm
Memory Size: 512 kB, 128 kB
Sensitivity: - 94 dBm
Output Power: 8 dBm
Interface Type: ADC, I2C, ISC, NFC, PDM, UART, USB
Mounting Style: SMD/SMT
Frequency Range: 2.36 GHz to 2.5 GHz
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.7 V
Antenna Connector Type: NFC
Operating Supply Voltage: 1.7 V to 3.6 V
Supply Current Receiving: 6 mA
Supply Current Transmitting: 6.1 mA
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
