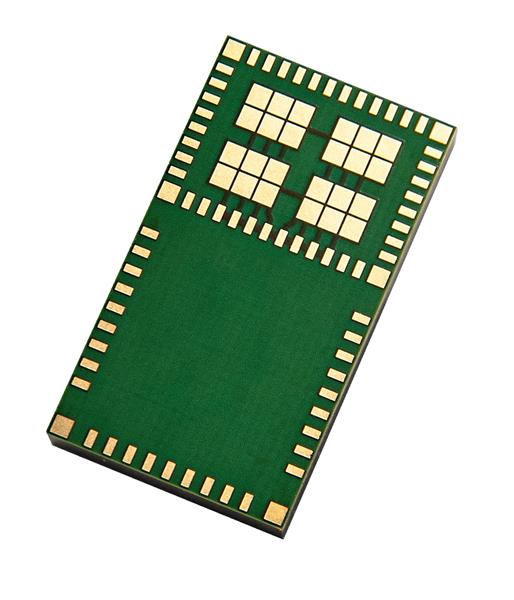

Insight SiP ISP4520-EU-ST LoRa, BLE nRF52832 LoRa Transceiver & BLE 5 Module EU
Manufacturer: Insight SiP Model: ISP4520-EU-ST - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Frequency: 863 MHz to 870 MHz, 2.4 GHz
Dimensions: 9.8 mm x 17.2 mm x 1.7 mm
Unit Weight: 6.419 g
Output Power: 14 dBm
Interface Type: SPI
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.8 V
Antenna Connector Type: External
Operating Supply Voltage: 1.8 V to 3.6 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
