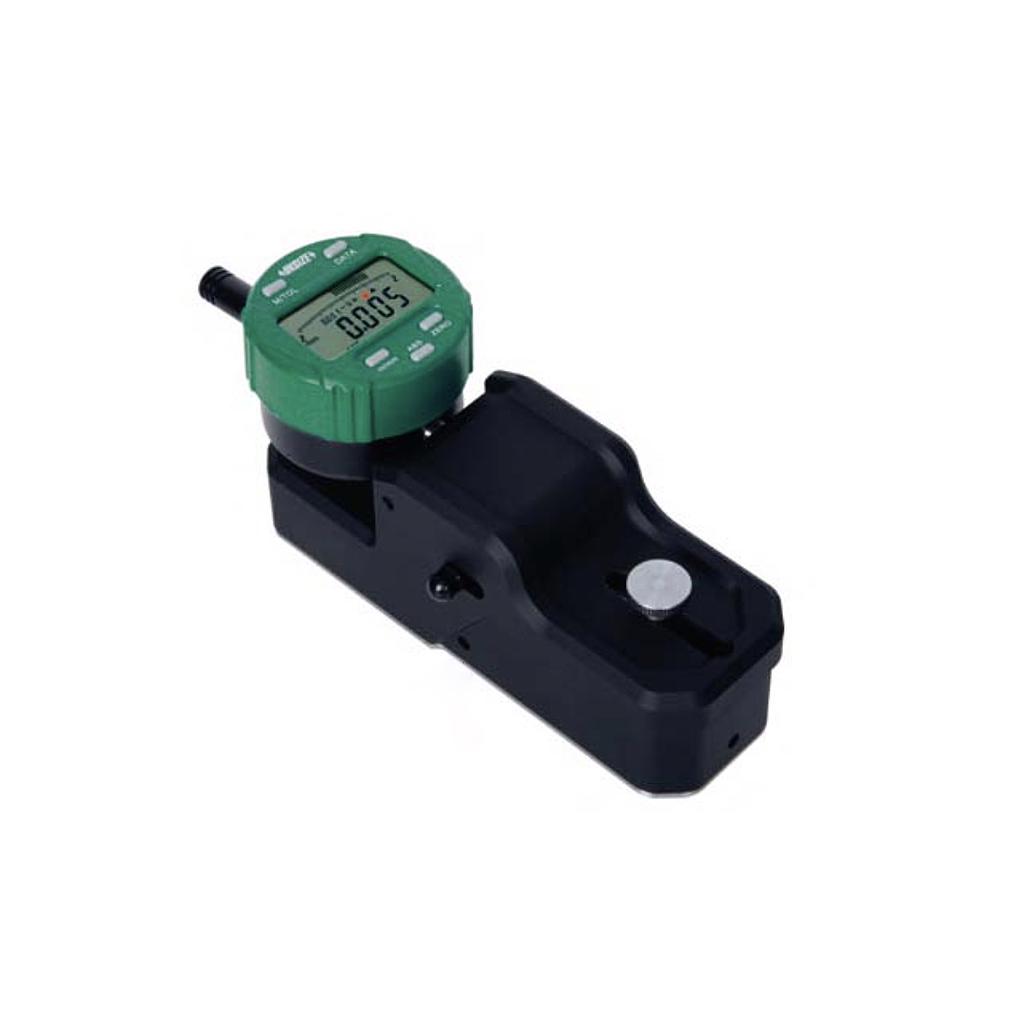

INSIZE 2932-451 Digital Internal Measuring Gages (20-45mm/0.8-1.8")
Manufacturer: INSIZE Model: 2932-451 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Measuring range (L): 20-45mm/0.8-1.8"
Resolution: 0.001mm/0.00005"
Accuracy: 5µm
Repeatability: 1µm
Movable point stroke: 5mm/0.02"
Point height is adjustable, h=2-25mm
CR2032 battery, automatic power off (time is adjustable)
Data output
Indicator
With transmission button and signal light
Reading in digital and analog
Display can be rotated by 320°
Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement, max./min./TIR measurement, tolerance Go and No-Go display
Data output cable (optional): 7315-51 (need receiver), 7302-40M
