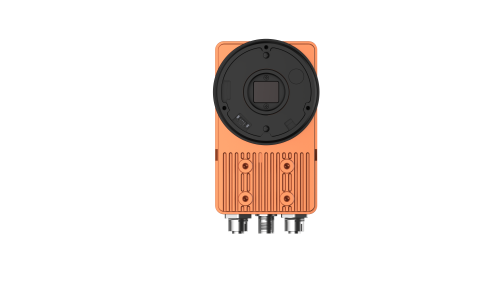

iRAYPLE DH-MV-SI5A20MG002E Smart Camera (1/1.7"CMOS; 4000 × 3000; Mono)
Manufacturer: iRAYPLE Model: DH-MV-SI5A20MG002E - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Basic
Resolution: 4000 × 3000
Max. Frame rate: 20 fps
Sensor Type: 1/1.7"CMOS
Shutter Mode: Rolling
Pixel Size: 1.85 μm × 1.85 μm
Mono/Color: Mono
Lens Mount: C-MOUNT
Trigger Mode: Software trigger/Hardware trigger/Free run mode
Software: MVP
Certifications: CE，FCC，KC
Port
Connector: 3 physical interface: 1 GigE, 1 GPIO, 1 VGA & 1 USB port
Network Port: 1Gbps Ethernet
GPIO Interface: 12 pins IO interface: 3 input without opto isolation, 3 output without opto isolation
Communication Mode: RS232 or RS485，1Gbps Ethernet
Communication protocol: SDK，Serial，TCPServer，TCPClient，Profinet，Modbus TCP
LED Indicator: 5 status indicators: 1 system, 2 network and 2 user configurable indicators
Power
Power Supply: DC24V
Power Consumption: ≤30W
Structure
Product Dimensions: 132.2mm*69mm*62mm
Packaging Dimensions: 190 mm × 179 mm × 127 mm
Net Weight: ＜600 g
Gross Weight: ＜800 g
Protection: IP67
Casing Material: Aluminium alloy
Environment
Operating Temperature: -20℃～+50℃
Operating Humidity: 20%～95%，No condensation
Storage Temperature: -30℃～+80℃
