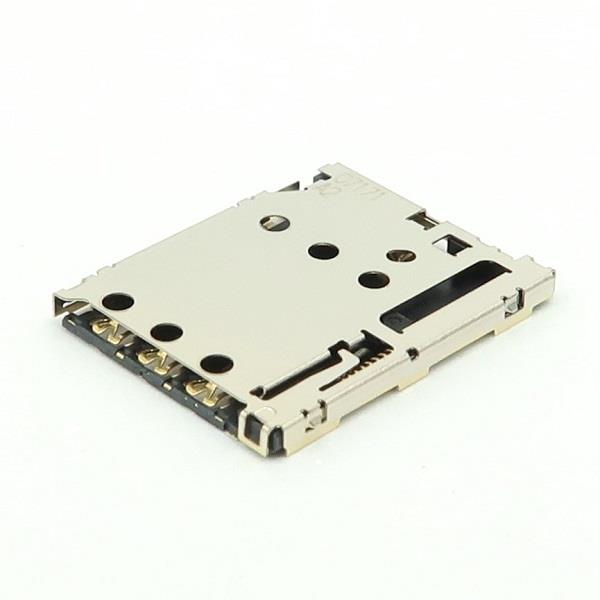

JAE Electronics SF72S006VBDR2500 Card Connectors NANO SIM Card
Manufacturer: JAE Electronics Model: SF72S006VBDR2500 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Height: 1.25 mm
Length: 14.35 mm
Card Type: NanoSIM
Unit Weight: 728.400 mg
Mating Cycles: 5000 Cycle
Current Rating: 500 mA
Mounting Style: PCB Mount
Number of Rows: 1 Row
Voltage Rating: 10 V
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: SMD/SMT
Number of Contacts: 6 Contact
Insertion - Extraction Style: Push-Push
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
