Jain Technology Xonic 10X Explosion Proof Clamp-on Ultrasonic Flowmeter

  • Manufacturer: JAIN
    Model: 10X
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manuafacturer: Jain Technology
Origin: Korea
Warranty : 12 month

Principle : Ultrasonic Transit-Time using DSP, Single Path
Mode : AR (Anti-Round) Mode
Display : Large Color LCD (320x240 pixel), flow, total, signal shape, Aux
Oscilloscope Function : signal shape on LCD
DSP Function
Power : 12~24DC
Measuring pipe : 6-300mm pipe OD
Accuracy : 1.0%
Repeatability : 1.0%
Turn Down Ration : 1000:1
Velocity Range : ±0.02 ~ 12 m/s
Output : 4-20mADC, Relay, RS-232C
Input : 4-20mADC (option)
Datalogger : 32 Mbytes
Operating Temp. : flow computer +20 ~ +60℃
transducer -40 ~ +120℃
Enclosure : NEMA 7 (IP67)

Detail

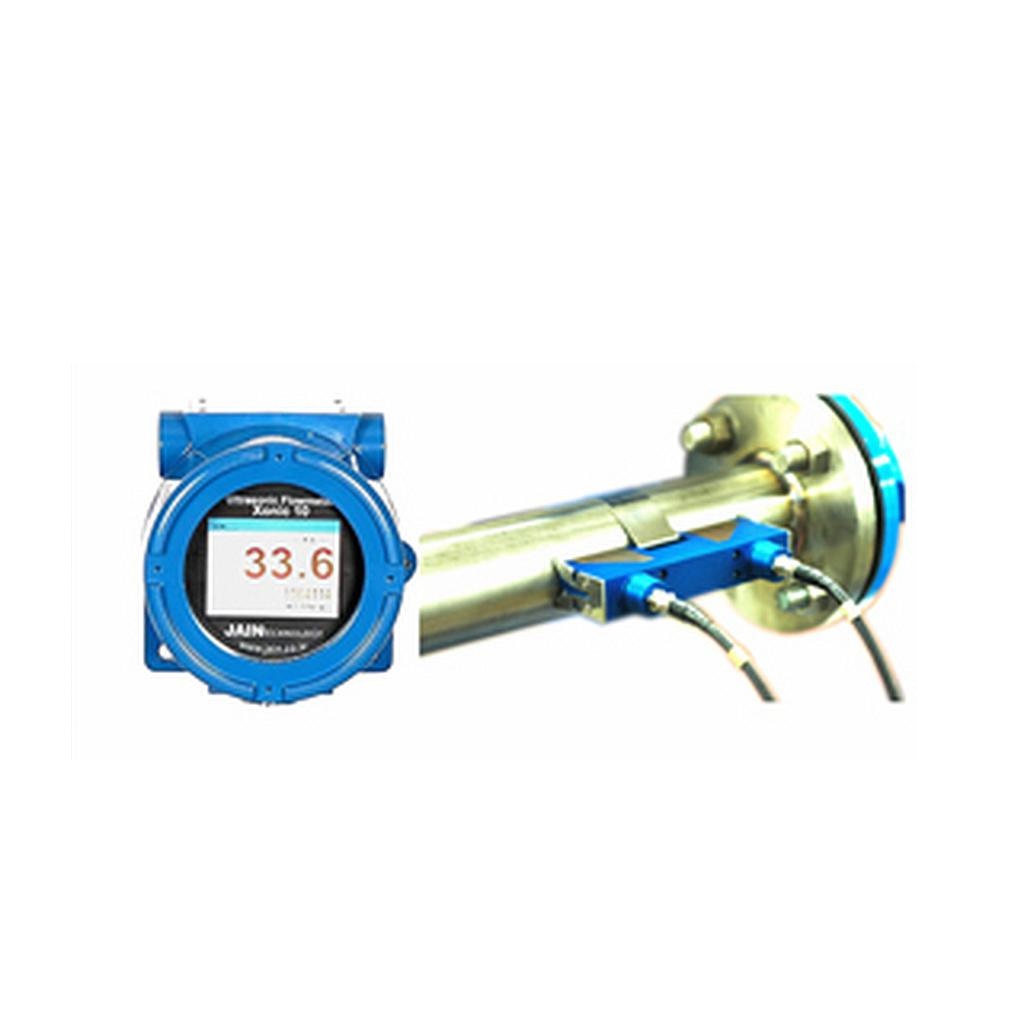

Clamp-on, Explosion Proof Ultrasonic Flowemter Xonic 10X


Clamp-on, Explosion Proof Ultrasonic Flowemter Xonic 10X

The flowmeter is used for clean water, waste water, chemical liquid, oil, etc and measure flow as clamp-on installation with explosion proof enclosure. It use one pair transducer to measure ultrasonic transit-time difference, and use DSP technology to remove any noise . The flowmeter use cross-correlation and FFT technology and can measure any type of liquid that contains high air, solids, and big noise.



Xonic 10X is consisted of

Flow Computer
  1ea
clamp-on type transducer
1pr
coaxial cable
1pr
Specification


1. Priciple : Ultrasonic Transit-Time using DSP, Single Path

2. Mode : AR (Anti-Round) Mode

3. Display : Large Color LCD (320x240 pixel), flow, total, signal shape, Aux

4. Oscilloscope Function : signal shape on LCD

5. DSP Function

6. Power : 12~24DC

7. Measuring pipe : 6-300mm pipe OD

8. Accuracy : 1.0%

9. Repeatability : 1.0%

10. Turn Down Ration : 1000:1

11. Velocity Range : ±0.02 ~ 12 m/s

12. Output : 4-20mADC, Relay, RS-232C

13. Input : 4-20mADC (option)

14. Datalogger : 32 Mbytes

15. Operating Temp. : flow computer +20 ~ +60℃

transducer -40 ~ +120℃

16. Enclosure : NEMA 7 (IP67)

Main Function


1. NEP Certified (NEP-MOCIE-2007-040호)

2. NET Certified (NET 0006)

3. Patent 10-0532041, 10-0560364, 10-0780707

4. Oscilloscope Function
