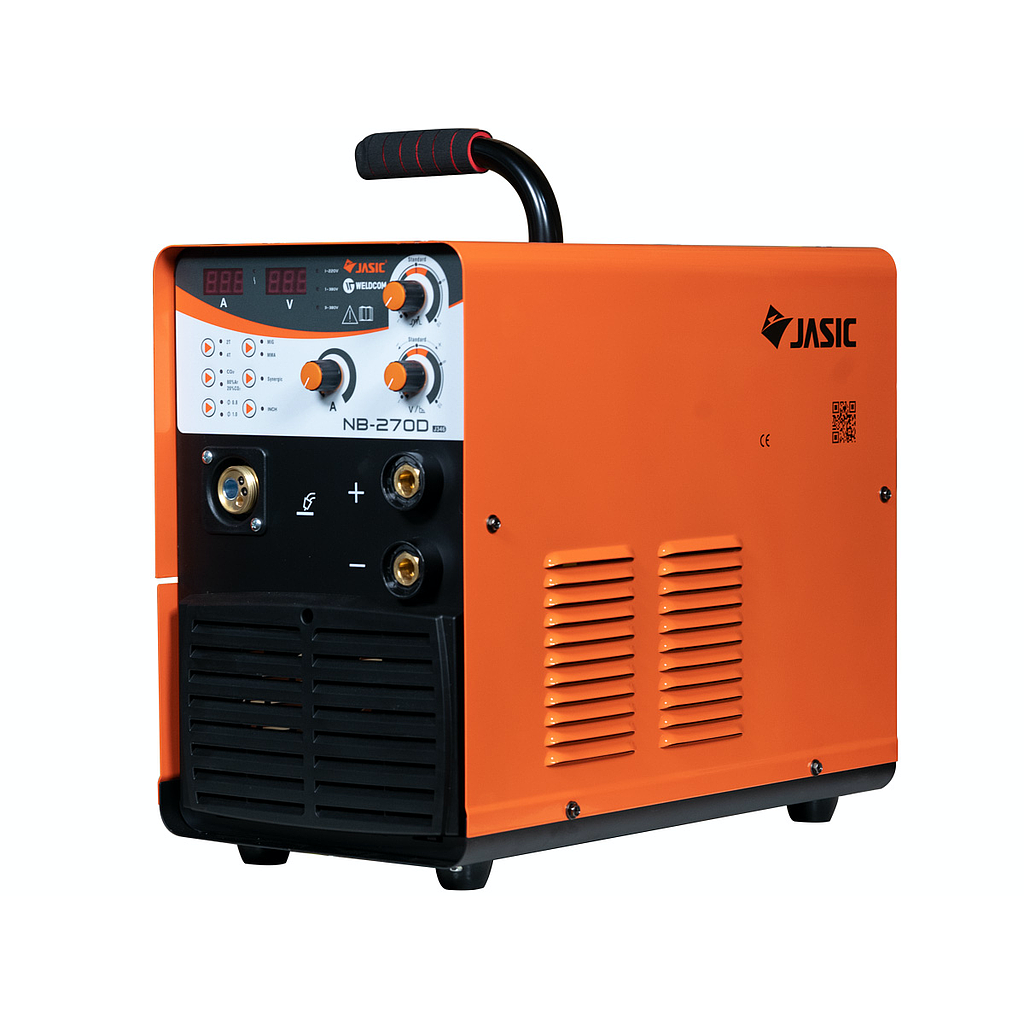

JASIC NB270D J346 MIG Welding Machine
Manufacturer: JASIC Model: NB270D J346 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
1 phase 220V
Rated input voltage: AC220V ±15% 50/60Hz
Power factor: 0.67
Rated open circuit voltage: 70V
Rated output (A/V): 200/24
Rated load cycle: 30%
Welding current adjustment range: 13-28V
1 phase 380V
Rated input voltage: AC380V ±15% 50/60Hz
Power factor: 0.48
Rated open circuit voltage: 61V
Rated output (A/V): 200/24
Rated load cycle: 30%
Welding current adjustment range: 13-28V
3 phase 380V
Rated input voltage: AC380V ±15% 50/60Hz
Power factor: 0.60
Rated open circuit voltage: 61V
Rated output (A/V): 270/27.5
Rated load cycle: 25%
Welding current adjustment range: 13-32V
Welding current adjustment range: 40-270A
Output features: MIG: CV MMA: CC
Protection class: IP21S
Insulation class: F
Welding wire diameter: 0.8 - 1.0mm
Stick welding diameter: 2.5-4.0mm
