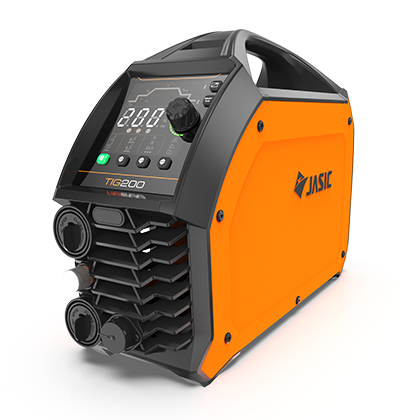

JASIC TIG200 W2S22 TIG Welding Machine
Manufacturer: JASIC Model: TIG200 W2S22 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Input voltage: AC230 V ± 15%, 50/60 Hz
Open circuit voltage: 62 V
TIG
Rated input current: 27 A
Rated input power: 6.2 kVA
Output current range: 5~200A
Load cycle: 25%
MMA
Rated input current: 29 A
Rated input power: 6.7 kVA
Output current range: 10~160A
Load cycle: 20%
Efficiency: 86%
Power factor: 0.68
Idle state power: MMA: 25 W; TIG: 2.4 W
Protection class: IP23
Insulation class: H
Dimension LxWxH: 413x150x311 mm
Net weight: 7.92 kg
