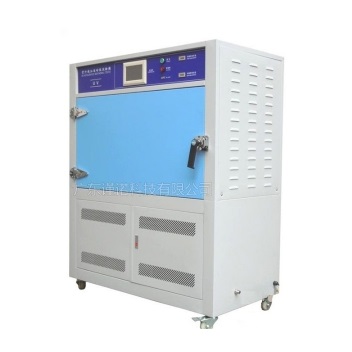

Jinuosh XM-XQUV002 UV Ultraviolet Accelerated Weathering Test Box (RT~70℃, ≥90%RH)
Manufacturer: Jinuosh Model: XM-XQUV002 Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Temperature range: RT+10℃~70℃
Humidity range: ≥90%RH
Temperature uniformity: 1℃
Temperature fluctuation: ±0.5℃
The center distance of the lamp tube: 70mm
The distance between the center of the test product and the lamp: 50 ± 3mm
Irradiance: adjustable within 1.0W/m2
The cycle of light, condensation and spray test is adjustable
Lamp tube: L=1200/40W, 8pcs (LVA/UVB service life above 1600)
Controller; color touch screen South Korea (TEM1880) or RKC intelligent controller
Temperature control method: PID self-tuning SSR control
Standard test piece size: 75×290mm (special specifications need to be stated in the contract)
Sink depth: 25mm automatic control
Effective irradiation area: 900×210mm
Ultraviolet wavelength: UVA range is 315-400nm; UVB range is 280-315nm
Test time: 0~999H (adjustable)
Irradiation panel temperature: 50℃~70℃
Standard sample rack: 24 pairs
The unit has automatic spray function
