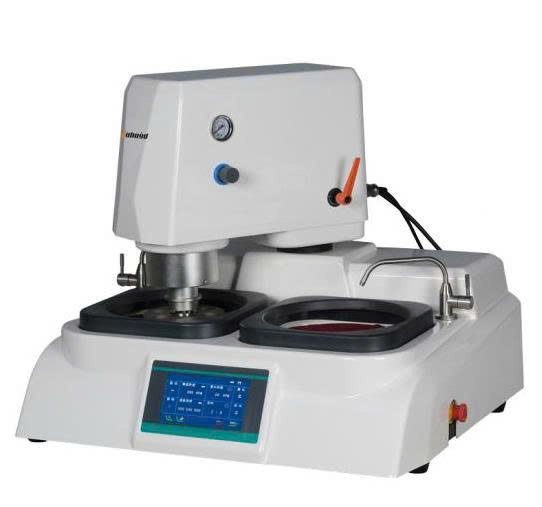

Johoyd HMP-2B polishing machine (0—120r/min)

Name: Johoyd HMP-2B polishing machine (0—120r/min)
Brand: Johoyd
SKU: JohoydHMP-2B
Availability: OutOfStock

Technical Parameters:

Grinding disc diameter: Standard φ254mm

Grinding disc speed: 100-1000r/min (stepless speed regulation) Four-speed speed regulation 300 500 800 1000r/min

Grinding head speed: 0—120r/min

Grinding disc rotation direction: Two-way forward and reverse

Grinding disc motor power: 2.2KW

Grinding head rotation direction: Clockwise

Grinding head motor power: 0.2KW

Grinding head locking method: Manual (optional automatic)

Timing adjustable time: 0-99min

Pressure method: Central pneumatic pressurization

Pressure adjustment method: Mechanical pressure regulation

Pressure range: 0-0.3Mpa (commonly used 0.05-0.3Mpa)

Specimen clamping specifications: Standard Ф30 (others can be customized)

Number of specimen clamping: 6

Power supply: Voltage: 220V Frequency: 50HZ

Total power: 2.8KW

Overall dimensions: 770 x 730 x 700mm

Wooden box dimensions: 950 x 810 x 810

Weight: 100Kg

Details

Product advantages:

1. The base is made of aluminum alloy material, which is lightweight, has good shock absorption and corrosion resistance.

2. The shell is made of high-end ABS, which is novel in appearance, high-end and classy.

3. Touch screen display control, clear and intuitive interface, easy to operate.

4. It can be timed, fixed speed and fixed pressure.

5. The built-in nozzle sump is automatically cleaned.

6. Infinite speed regulation or four-speed speed regulation, convenient and fast.

7. It can be started in single action or linkage as needed.

8. It can store more than 100 sets of grinding and polishing process formulas for quick call.

9. The magnetic disk design supports fast disk change, and it is more convenient and quick to change sandpaper and polishing fabric.

10. The free rotation design of the sample clamping plate, combined with the inner lighting system, is convenient for taking and placing samples.

11. The grinding head adopts electromagnetic clutch automatic locking, which is convenient and fast. (Optional)

12. The whole machine adopts DC brushless and stepper motors, which rotate smoothly, have low noise and long life.

13. Double-disc design, double-disc dual control, double sample preparation efficiency.

14. Automatic centering to prevent multiple grinding and polishing

Manufacturer:	Johoyd
Model:	HMP-2B
