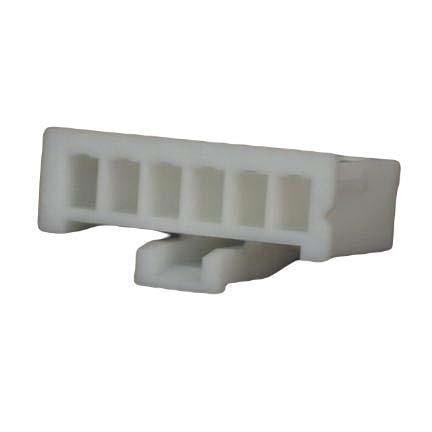

JST Commercial XARP-06V Housings XA HOUSING (XAP)
Manufacturer: JST Commercial Model: XARP-06V - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Pitch: 2.5 mm (0.098 in)
Wire Gauge: 28 AWG to 20 AWG
Application: Wire-to-Board
Housing Color: Natural
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 250 VAC/DC
Housing Material: Polyamide (PA66)
Termination Style: Crimp
Number of Positions: 6 Position
Insulation Resistance: 1 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
