Home Pressure Sensors & Transmitters, Tranducers Jumo MIDAS C08 pressure transmitter for basic applications (0~1.6bar, Part No.:00550506)

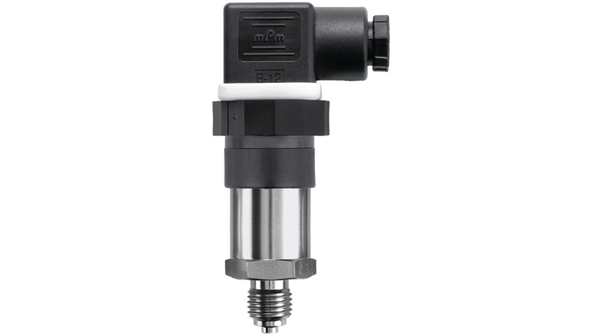

Jumo MIDAS C08 pressure transmitter for basic applications (0~1.6bar, Part No.:00550506)

Order code: 401002/000-455-405-502-20-601-61/000

Input: 0 to 1.6 bar relative pressure

Output: 4 to 20 mA, two-wire

Process connection: G 1/4 DIN EN 837

Process connection material: CrNi (stainless steel)

Material seal: FKM (standard)

Electrical connection: Cable socket DIN EN 175301-803, Form A

Extras codes: None

Details

This pressure transmitter is a basic product and acquires the relative pressure of liquid as well as gaseous media. The ceramic sensor has a long-term stability of under 0.2 %. It is used in particular in mechanical and plant engineering.

Datasheet
