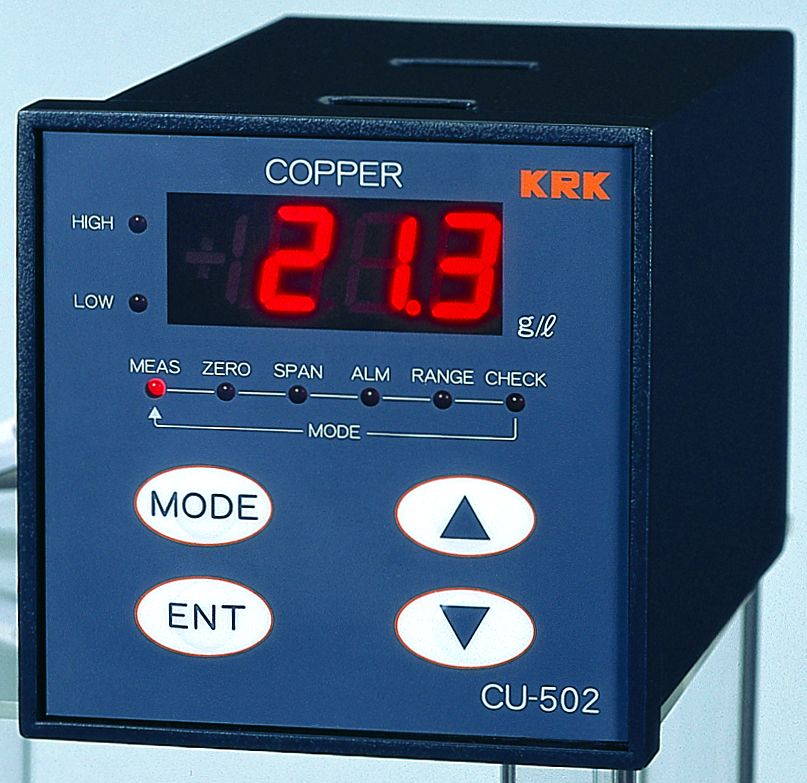

KASAHARA CU-502 Copper density monitor of the plating solution (0 ~ 300 g/l)

Measurement target: Copper concentration in solution

Measurement method: AC lighting type Spectrophotometry

Indication: LED Red 3 digits (or 4 digits)

Measuring range:

  Cu High concentration

   (1): 0 ~ 20 g/l

   (2): 0 ~ 50 g/l

   (3): 0 ~ 80 g/l

 Low concentration

   (1): 0 ~ 5 g/l

   (2): 0 ~ 10 g/l

   (3): 0 ~ 20 g/l

 CuSO4

   (1): 0 ~ 100 g/l

   (2): 0 ~ 200 g/l

   (3): 0 ~ 300 g/l

Resolution:

   Cu High Concentration: 0.1g/l

   Low Concentration: 0.01g/l

   CuSO4: 1g/l

Reproducibility: Within ±2%

Response Time: Within 5 seconds

Ambient temperature: -5°C~40°C 85%RH or less

Power: AC85V~240V-free power supply

Power Consumption: Approx. 10VA

External dimensions: 96(H)×96(W)×163(D)

Weight: Approx. 1.3kg
