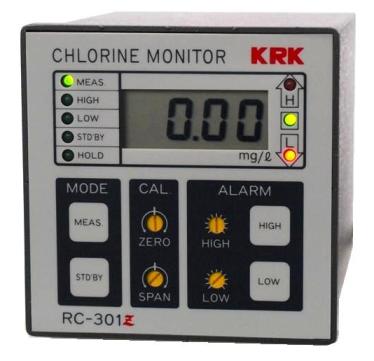

KASAHARA RC-301Z-40-22 Residual chlorine meter (AC100V±10％, 50／60Hz)

Measured Components:

   Residual chlorine component

   A mode: Free residual chlorine component

   B mode: Total residual chlorine component

Measuring principle: 3-electrodestationary polarographic method

Measurement method: Bead cleaning type micro-solid metal 3-electrode method

Measurement concentration range: 0～2．00mg／L

Indication: Digital 3-digit LCD display Minimum resolution: 0.01 mg/L

Reproducibility: F.S within ±5% (flow rate, pH, temperature, conductivity constant)

Water sampling pH range:

   A mode: pH 5.8 ~ 8.0

   B mode: pH 5.8 ~ 8.6

Conductivity range: 10 mS/m or more

Water sampling temperature range: 0~45°C (no freezing)

Response Time: 90% response within 1 minute

Temperature Compensation: Automatic temperature compensation with thermistor

Power: AC100V±10％, 50／60Hz

Power Consumption: Approx. 5VA

Ambient temperature range: －10～45℃

External dimensions: 96（H）×96（W）×154（D）mm
