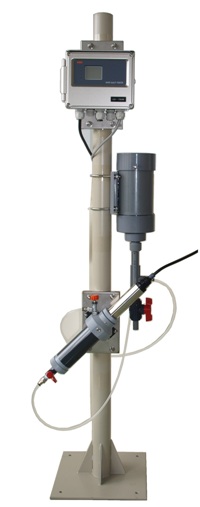

KASAHARA TCR-700W On-site turbidity and chromaticity monitor (0~2000°C )

Measuring principle: Two-wavelength transmitted light measurement method

Indication:

   Upper: Turbidity (degrees)

   Bottom: Chromaticity (degrees)

Measuring range:

   Turbidity: 0~50 degrees (polystyrene turbidity)

   Chromaticity: 0~50 degrees (cobalt chloride platinum acid standard)

Resolution:

    0.01 degree: range of 11 degrees or less

    0.1 degree: range of 11~50 degrees

Reproducibility: ± 2% or less/FS

Power supply voltage: AC85~240V 50/60Hz

Ambient conditions:

   Temperature: -5~45°C

    Humidity: 85%RH or less

Dimensions & Weight:

   Instrument body: 215×170×95, Approx. 1.75kg (with mounting plate)

   With hood: 244×196×105, Approx. 2.5kg (with mounting plate)

Details

Datasheet
