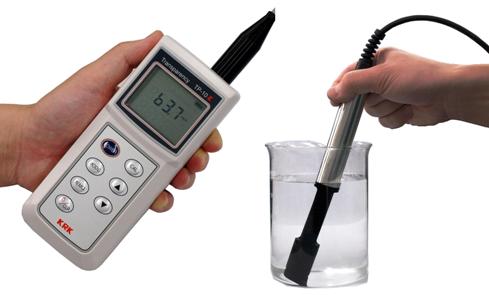

KASAHARA TP-10Z Probe type fluoroscopy sensor (DC4.5V)

Measuring principle: Lens Focused Transmitted Light Measurement

Measurement wavelength: Near-infrared light 880nm

Measuring range: 2.0~200cm

Indication: LCD 4 digits

Minimum resolution: 0.1cm(2.0~99.9cm); 1cm (100~200cm)

Reproducibility: ± 3% (FS) or less (under certain conditions)


   (1) Simple calibration filter      (2) Equivalent standard solution for calibration

Memory function: Up to 30

Ambient temperature: 0°C~40°C, humidity 95%RH or less

Power supply voltage: DC4.5V (AAA alkaline batteries LR3×3pcs), auto power-off function

External dimensions: 70×170×36(mm)

Weight: Approx. 270g

Standard Configurations: Fluorosis sensor, anti-impact rubber cover, dry battery, case, measuring container (PVC), instruction manual, simple calibration filter
