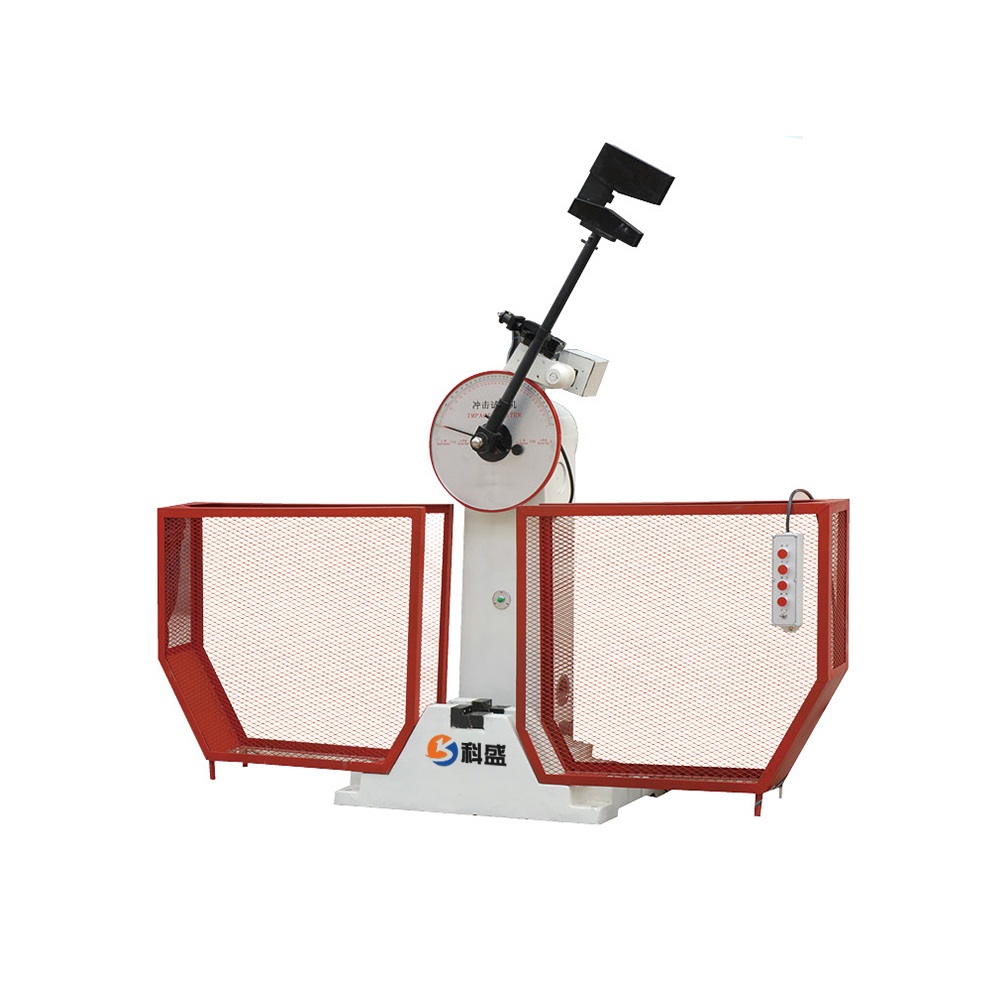

Kason JB-300B Semiautomatic Charpy Impact Testing Machine (300 J, 150 J)
Manufacturer: Kason Model: JB-300B - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Impact Energy: 300 J, 150 J
Control Methods: Electric Control
The Distance Between The Pendulum Shaft And Impact Point: 750 mm
Minimum Reading Value: 1 J
Impact Speed: 5.2 m/s
Pre-rising Angle Of The Pendulum: 150°
Specimen Bearer Span: 40+0.2 mm
Round Angle Of The Jaw: R 1.0~1.5 mm
Round Angle Of Impact Edge R 2.0~2.5 mm (Special Order: R8±0.05 mm)
Thickness Of Impact Blade: 16 mm
Angle Accuracy: ±0.1°
Pendulum Torque: M=160.7695N.m
Impact Pendulum Configuration: 150 J, 1 PC; 300 J, 1 PC
Standard Specimen Dimension: 10 mm * 10 (7.5 or 5) mm * 55 mm
Power Supply: 3phs, 380V, 50Hz
Dimensions: 2124mm * 600mm * 1340mm
Net Weight: 450 KG
