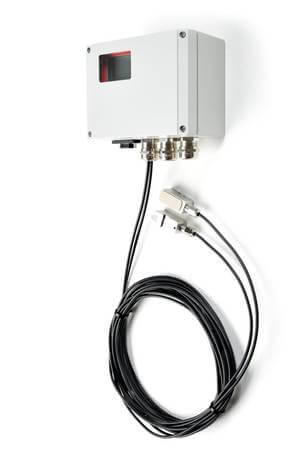

Katronic KATflow 100 Standard clamp-on ultrasonic transmitter (10 mm~3,000 mm; 0.01~25 m/s; LCD 128 x 64 dots)

SPECIFICATION

Pipe diameter range: 10 mm ~ 3,000 mm

Temperature range for sensors: -30 °C ~ +80 °C (-22 °F ~ +176 °F)

Weight 750 g

Robust IP 66 aluminium enclosure

Selectable three-line LCD display and full keypad

Sturdy unit with LCD display and five-key keypad

Wall or pipe mounted

Accessories: With LCD graphic display, 128 x 64 dots, backlit and 5-key keypad (See Datasheet to choose the suitable model)

PERFORMANCE

Measurement principle: Ultrasonic transit-time difference

Flow velocity range: 0.01 ... 25 m/s

Resolution: 0.25 mm/s

Repeatability: 0.15 % of measured value, ±0.015 m/s

Accuracy:

Volume flow:

±1 ... 3 % of measured value depending on application

±0.5 % of measured value with process calibration

Flow velocity (mean): ±0.5 % of measured value

Turn down ratio: 1/100 (equivalent to 0.25 ... 25 m/s)

Measurement rate: 100 Hz (standard)

Response time: 1 s; 90 m/s (optional)

Damping of displayed value: 0 ... 99 s (selectable by user)

Gaseous and solid content of liquid media: < 10 % of volume
