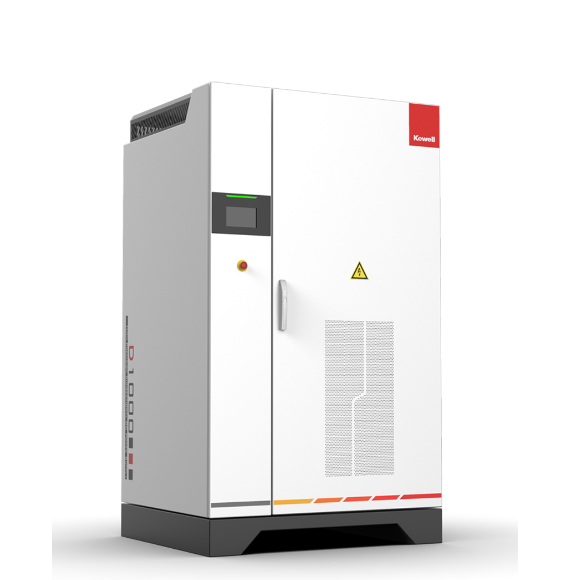

Kewell EBD-250-1000-600 Battery Pack Charge-Discharge Test Power Supply (600A, 416V, 250W)
Manufacturer: Kewell Model: EBD-250-1000-600 Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Rated Power[kW]: 250
Rated Current[A]: 600
Rated Voltage[V]: 416
Voltage Range[V]: 24-1000
Input Requirements:
Phase: 3φ3W+PE
Voltage: 380V±15%
Frequency: 50Hz±5Hz
iTHD: ≤3%
Power Factor: ≥0.99
Output Characteristics:
Voltage Precision: ±(0.1%•FS+5dgt) (EBD Series)
Current Precision: ±(0.1%•FS+5dgt) (EBD Series)
Response Time: ≤10ms (0%~90%) (EBD Series)
Switching Time: ≤20ms (-90%-90%) (EBD Series)
Sampling Frequency: 10ms
Current Ripple (rms): ≤0.2%•FS
Load Regulation: 0.1%•FS
Voltage Resolution: 0.001V
Current Resolution: 0.001A
Power Resolution: 0.001kW
Maximum Power: 94%
Protection: OVP/OCP/OTP/Phase Loss/Emergency Stop etc.
Communication Interfaces & Control Program:
Local Interface: LCD
Remote Comms: RS485/LAN /CAN
Others: External emergency stop/Fault signal/Voltage compensation
Work Step Index: ≤9999
Cycle Index: ≤9999
Loop Nesting: ≤10 layers
