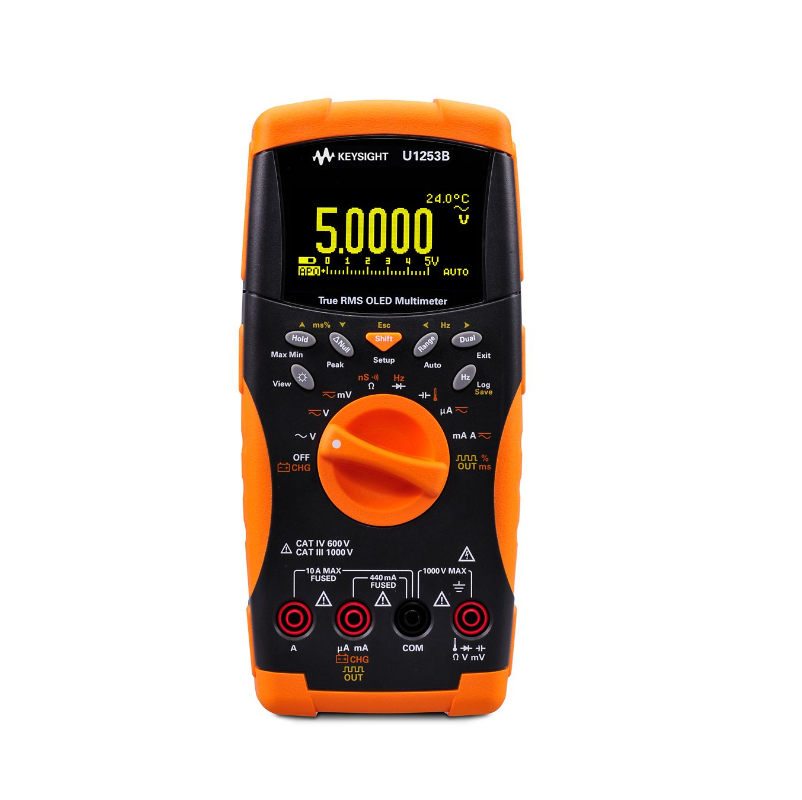

KEYSIGHT U1253B Digital Multimeter (OLED,0.025%, out PWM 4.8kHz, charger, AC+DC)
Manufacturer: KEYSIGHT Model: U1253B - Contact
- In stock: 3 Unit
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
- Organic LED
- True RMS:
- Bandwidth: 100khz
- Voltage AC+DC: yes
- Current AC+DC: yes
- Voltage DC:
50.000 mV /0.05%
500.00 mV, 1000.0 mV, 5.0000 V, 50.000 V /0.025%
500.00 V, 1000.0 V /0.03%
- Voltage AC (true RMS):
50.000 mV, 500.00 mV, 1000.0 mV,
5.0000 V, 50.000 V, 500.00 V /0.4%
- Resistance:
500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 50.000 kΩ,/0.05%
5.0000 MΩ /0.1%
50.000 MΩ, 500.00 nS /1%
- Diode: Yes
- Current DC:
500.00 µA, 5000.0 µA /0.05%
50.000 mA, 440.00 mA /0.15%
5.0000 A, 10.000 A /0.3%
- Current AC (True RMS):
500.00 µA, 5000.0 µA, 50.000 mA,
440.00 mA, 5.0000 A, 10.000 A /0.7%
- Capacitance: 0.0101nF-100.00mF /1%
- Temperature type J,K: K: –200 ~ 1372 ºC, J: –210 ~ 1200 ºC (option)
- Frequency: 1MHz /0.02%
- Dataloging: 100 manual, 200 interval point
- 4-20mA %scale
- Output PWM: 0.5-4.8khz, 0.39% ~ 99.60% /0.005%
- PC connectivity: IR-USB (option)
- Connectivity: IR-to-Bluetooth (option)
Power supply: Ni-MH Rechargeable battery
Dimensions: 203.5 mm x 94.4 mm x 59.0 mm
Include accessories: Test Lead Set; Quick Start Guide; Rechargeable Ni-MH Battery; Power Cord and Adapter; Certificate of Calibration
Datasheet
Brochures
Optional Accessories:
U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)
U1171A: Magnetic hanging kit
U1170A: AC power adapter with power cord - offer to all countries
U1174A: Carrying case, soft
U1172A: Transit case for handheld DMM, aluminum-clad
U1186A: Thermocouple (K-type, 1m) and adapter
U1185A: Thermocouple (J-type) and adaptor
U1184A: Adaptor, temperature probe
U1163A: Grabbers, SMT
U1164A: Test probes, fine tip
U1181A: Immersion probe type K
U1182A: Surface probe, industrial
U1183A: Probe, air
U1162A: Alligator clip
U1180A: T/C adapter + lead kit, J and K type
U1161A: Test lead kit, extended
U1583B: AC current clamp
U1187A: Thermocouple (K-type, 3.5m) and adapter
U1176A: LED flash light
U1177A: Infrared (IR)-to-Bluetooth class 2 (10meter) adapter
U1168B: Test lead kit
U1117A: Infrared (IR)-to-Bluetooth class 1 (100meter) adapter with Mfi
U1115A: Bluetooth class 1 (100meter) remote logging display
U1118A: Remote connectivity kit (100meter) with U1115A and U1117A
U1173B: IR-USB cable, all U1200 series handheld multimeter VOLT: DC 3.3V - 5V
