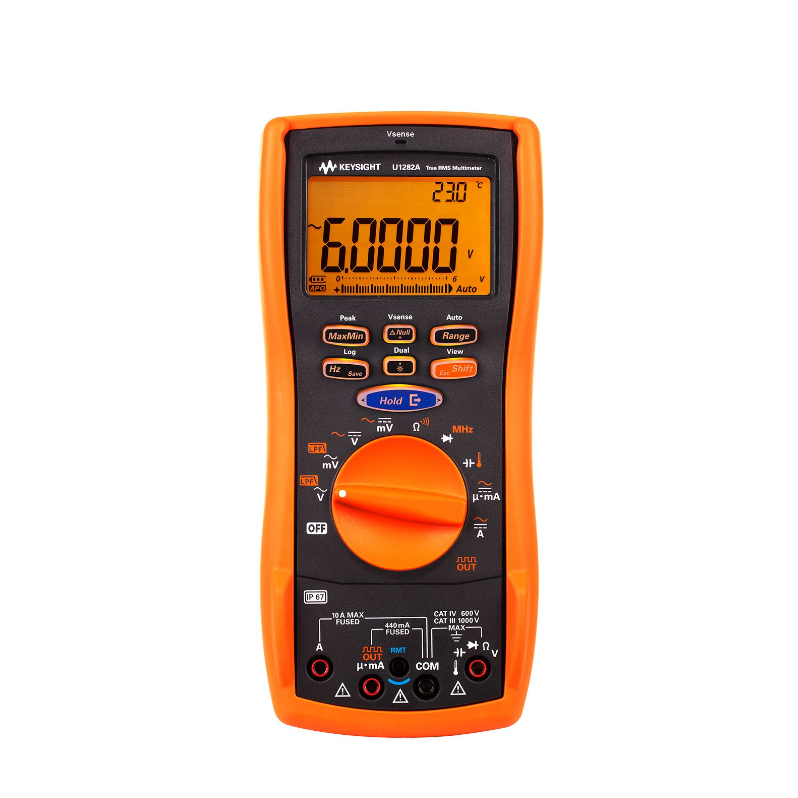

KEYSIGHT U1282A Handheld Digital Multimeter, 4 ½ Digit, IP67 (60000 Count)

  • Manufacturer: KEYSIGHT
    Model: U1282A
    Origin: Malaysia
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • 14,398,020 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: KEYSIGHT
Model :
U1282A
Made in Malaysia
Warranty: 12 months

Digits of Resolution: 4 ½ digits

Display Type: 7-segment LCD

Reading Speed: 40 readings/s

Basic 1-Year DCV Accuracy: 0.025%

Vsense alerts in the presence of high AC voltage

Built-in square-wave generator

Measurement Functions: DCV; ACV; DCI; ACI; Resistance; Frequency; Capacitance; Diode test; Temperature, Continuity test with visual and audio alerts

Battery Life: 800 hours, 4 x 1.5 V AA

Connectivity: IR to USB or Bluetooth

60,000 counts resolution on dual display and high basic DCV accuracy

Display resolution: 60,000 counts

True RMS: AC + DC

Voltage DC : 60 mV to 1000 V/ 0.025 % + 5 cnts

Voltage AC: 60 mV to 1000 V/ 0.3 % + 25 cnts

Current DC: 600 µA to 10 A/ 0.05 % + 5 cnts

Current AC: 600 µA to 10 A/ 0.6 % + 25 cnts

Resistance: 600 Ω to 60 MΩ/ 0.05 % + 2 cnts

Frequency: 99.999 Hz to 9.9999 MHz/ 0.005 % + 3 cnts

Temperature: J, K-type

Operating temperature: –20 °C to 55 °C

Ingress protection rating: IP-67

Dimensions (W x H x D): 218 x 96 x 59 mm

Weight: 701 grams



Included accessories: Power cord, Quick guide, Calibration certificate, IR-to-USB Cable, Batteries

Detail

View DATASHEET
