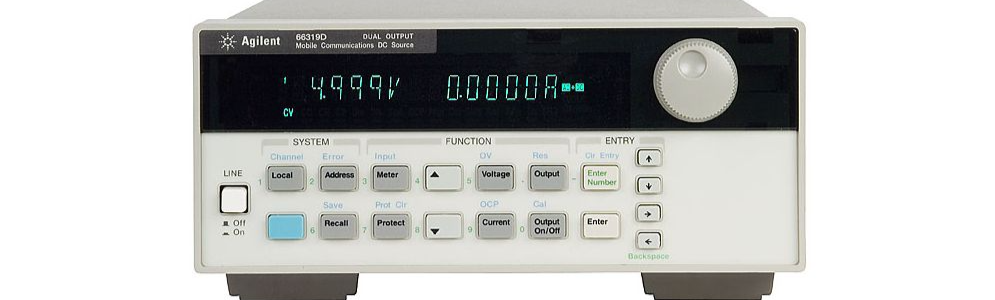

KEYSIGHT 66319D Dual Mobile Comm DC Source (15 V, 3A)
Manufacturer: KEYSIGHT Model: 66319D - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Output ratings
Voltage: 0 to 15 V
Current: 0 to 3 A
Peak Current for up to 7 ms: 5 A
Programming accuracy at 25°C ±5°C (% of setting plus fixed)
Voltage: 0.05% + 10 mV
Current: 0.05% + 1.33 mA
DC readback accuracy
Voltage: 0.03% + 5 mV
Current (-3 A to + 5 A): 0.2% + 0.5 mA
Current (-1 A to + 1 A): 0.1% + 0.2mA
Current (-20 mA to + 20 mA): 0.1% + 2.5 µA
